EPS Sandwich Panel Line
Overview
Automated production of fire-resistant insulation panels
EPS (Expanded polystyrene), well known as Styrofoam, is a good thermal insulation with waterproofing. Also, it can be recycled. However, the biggest selling point is a low price.

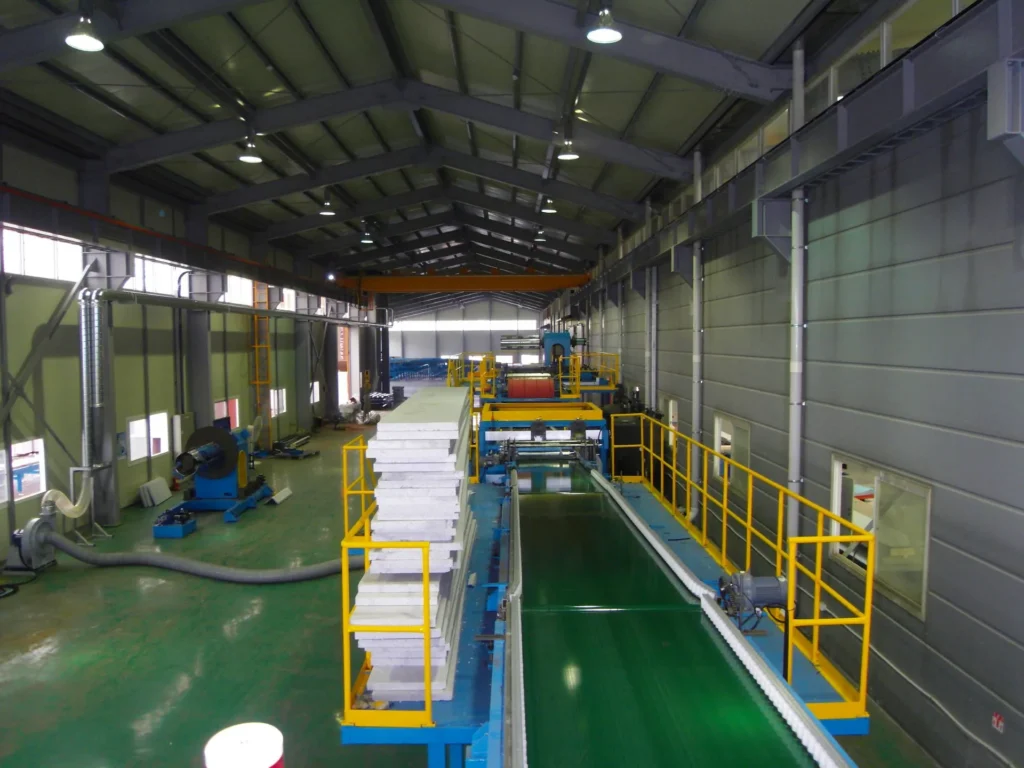

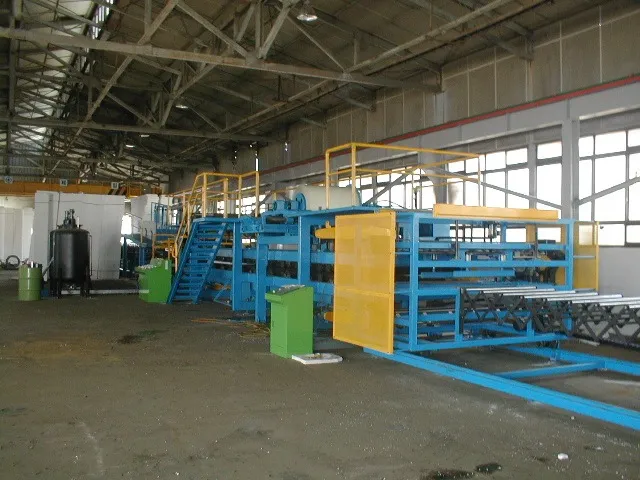

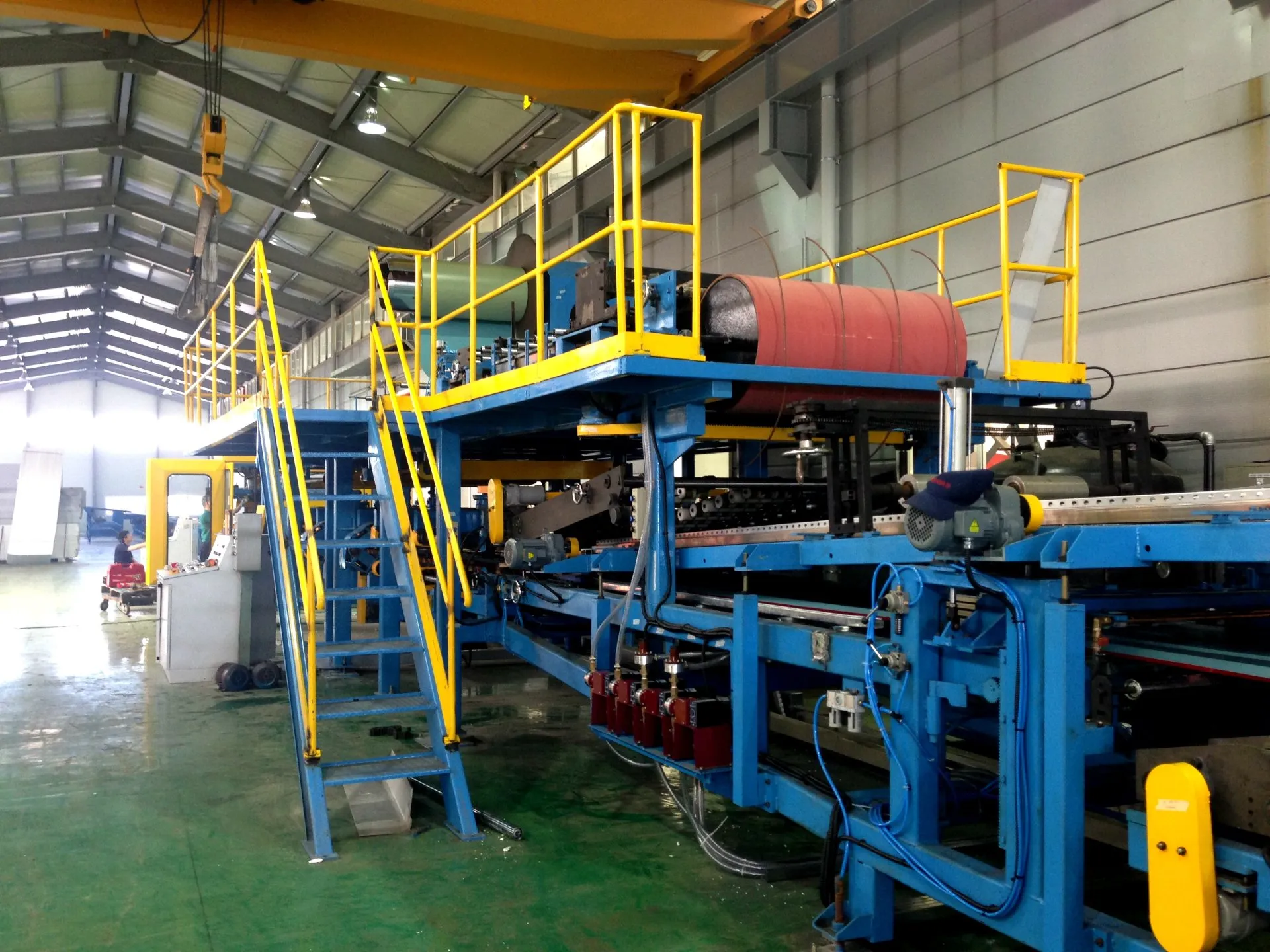

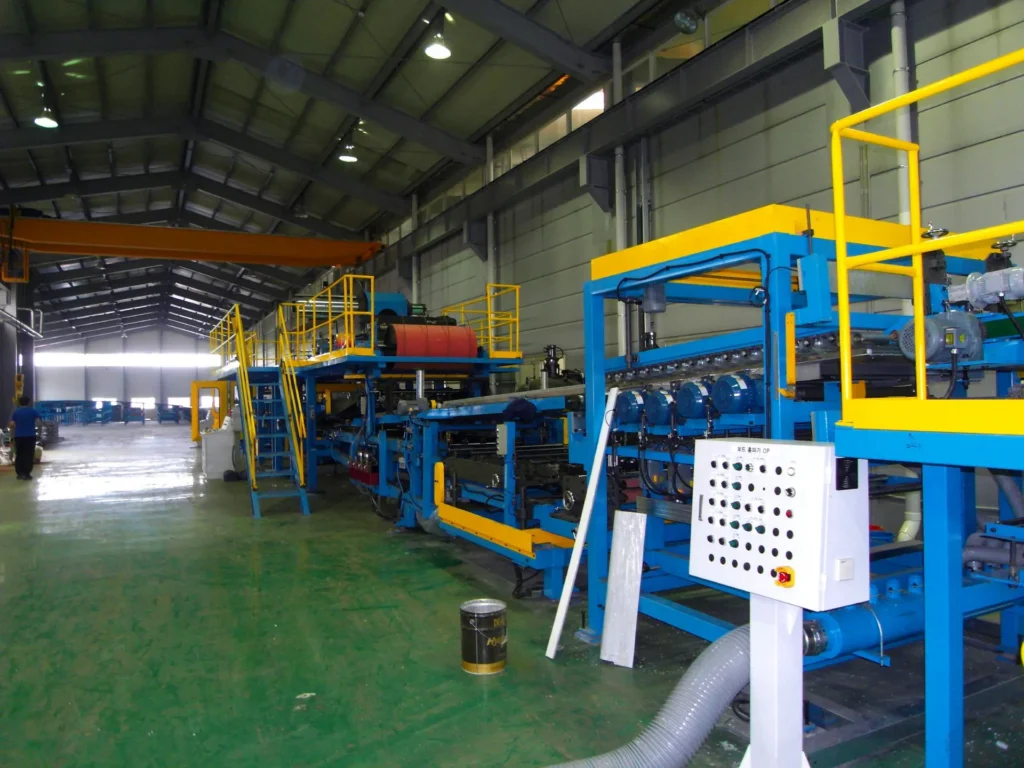

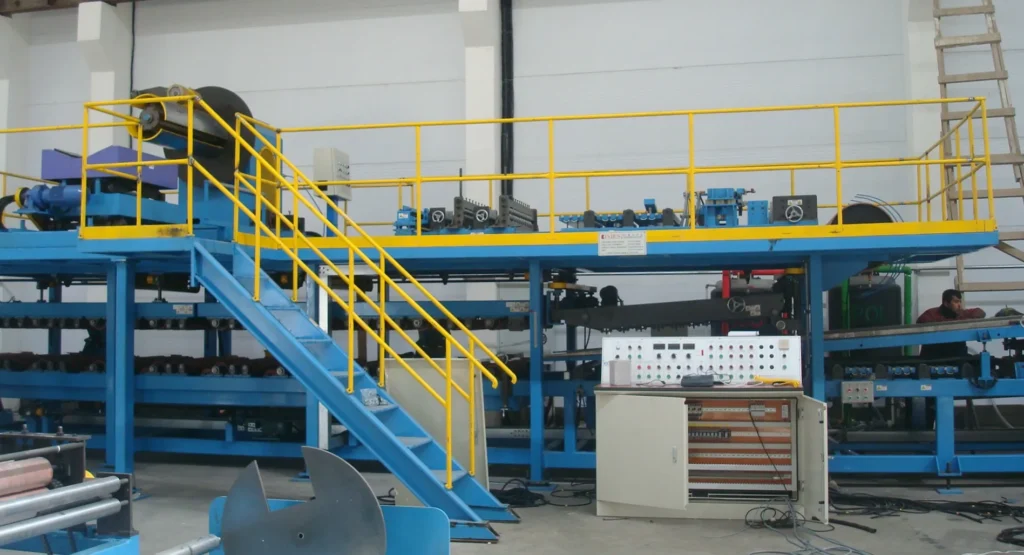

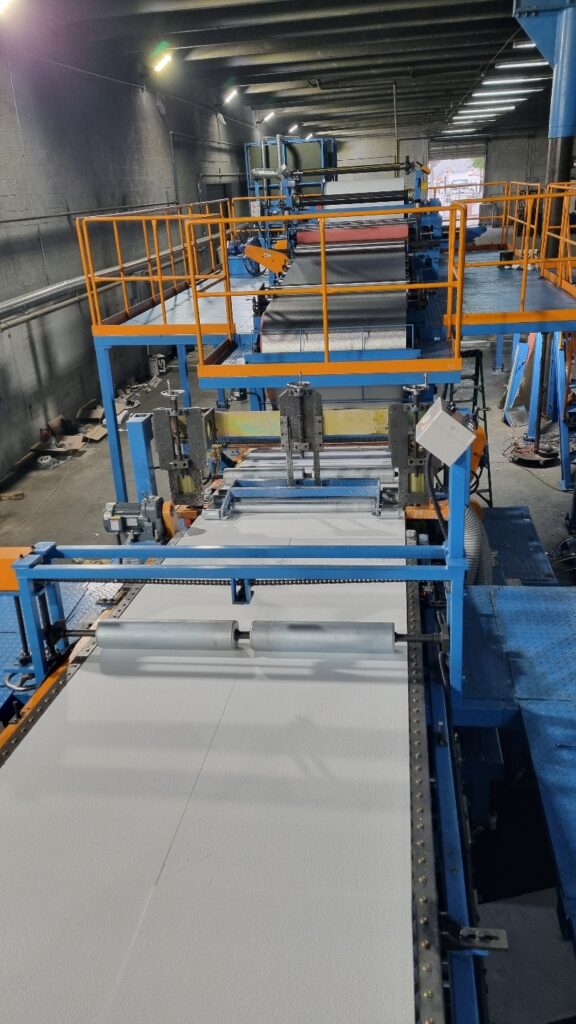

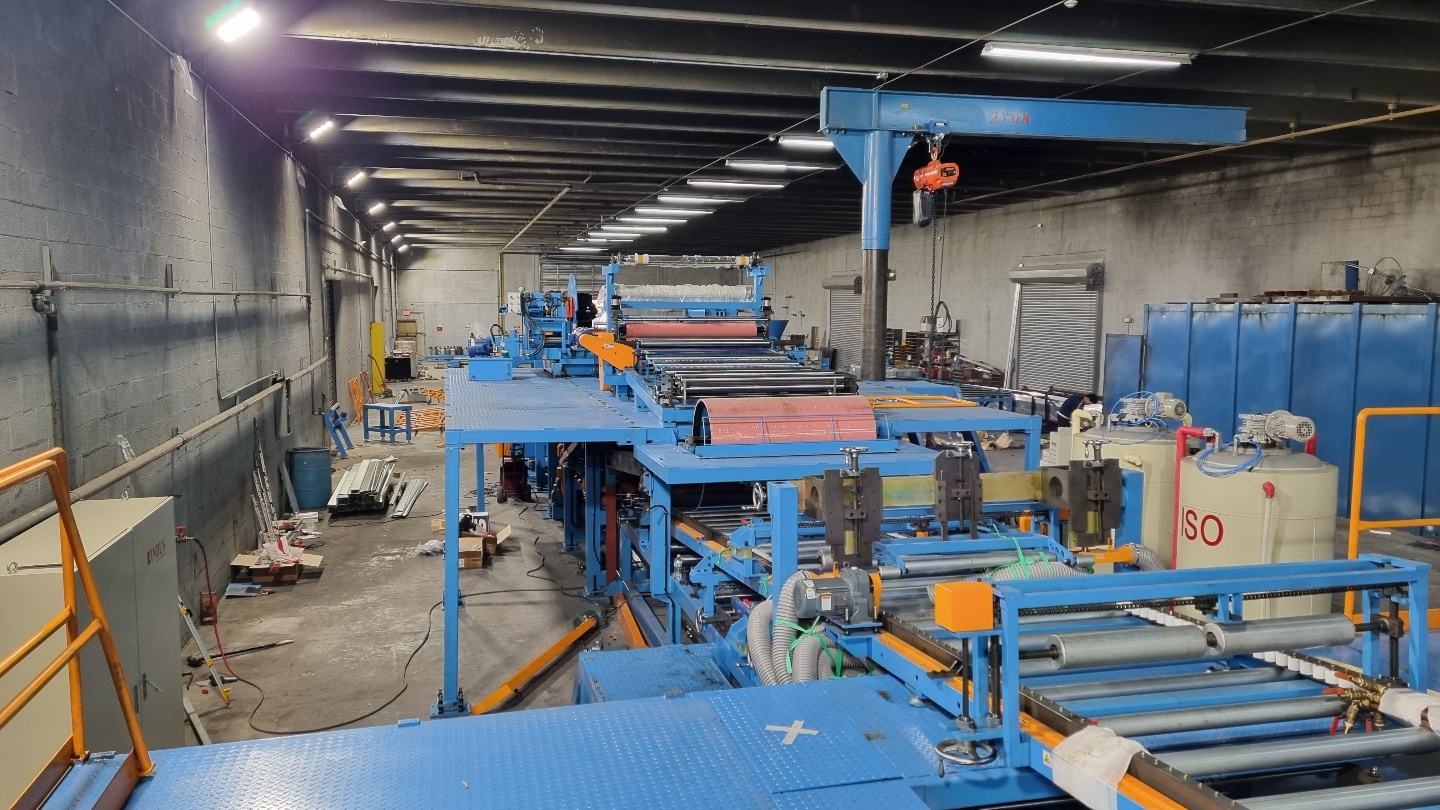

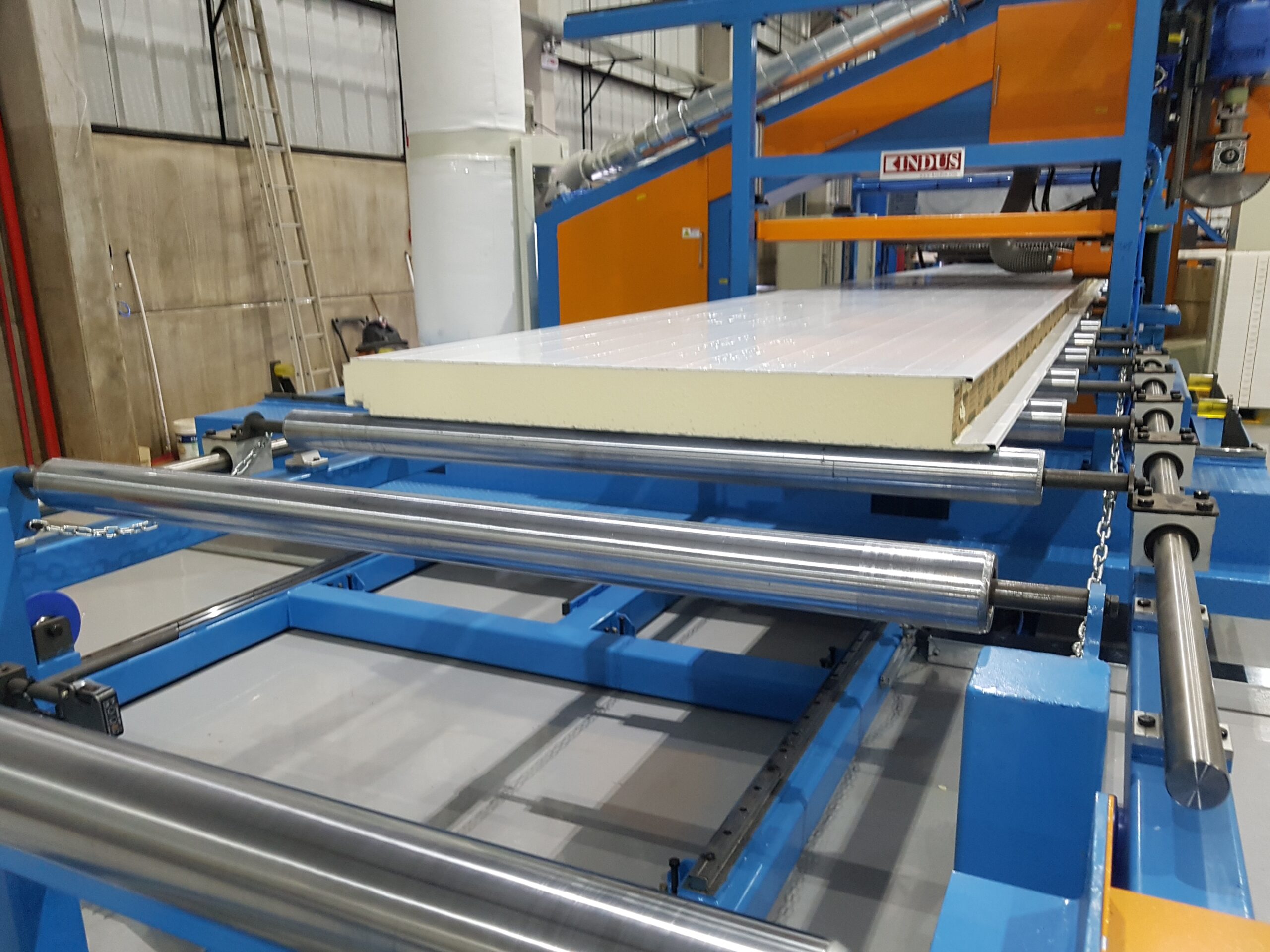

Our EPS sandwich panel line is a fully automation equipment system to produce various shapes of sandwich panels continuously and efficiently using EPS as a core material.
Our expanded polystyrene sandwich panel production line (EPS sandwich panel line) is already recognized its value by major sandwich panel producing companies at domestic and foreign with various technical researches and a high level services, KINDUS, we will keep trying for development in accordance with customer’s needs for the high quality sandwich panels.
Currently, KINDUS, we had become not only the biggest Korean sandwich panel machinery manufacturing company, but also one of major sandwich panel production (EPS, MW, PU/PIR) company with 4 continuous sandwich panel production lines.
In this regard, KINDUS, we can provide a special and differentiated service to all our clients that supplying production line along with various techniques and know-hows which are very useful to maintain and operate the equipment in actual work site.
Our EPS sandwich panel line is a fully automation equipment system to produce various shapes of sandwich panels continuously and efficiently using EPS as a core material.
Our expanded polystyrene sandwich panel production line (EPS sandwich panel line) is already recognized its value by major sandwich panel producing companies at domestic and foreign with various technical researches and a high level services, KINDUS, we will keep trying for development in accordance with customer’s needs for the high quality sandwich panels.
Currently, KINDUS, we had become not only the biggest Korean sandwich panel machinery manufacturing company, but also one of major sandwich panel production (EPS, MW, PU/PIR) company with 4 continuous sandwich panel production lines.
In this regard, KINDUS, we can provide a special and differentiated service to all our clients that supplying production line along with various techniques and know-hows which are very useful to maintain and operate the equipment in actual work site.
Key Benefits
Fully Automated Continuous
Production
Production
Cost-Effective EPS
Core Processing
Core Processing
High-Speed Panel
Manufacturing
Manufacturing
Integrated End-to-End
Production Line
Production Line
Stable Cooling and
Finishing System
Finishing System
Automated Stacking and
Packaging System
Packaging System
Production process
Sandwich Panel Line Composition

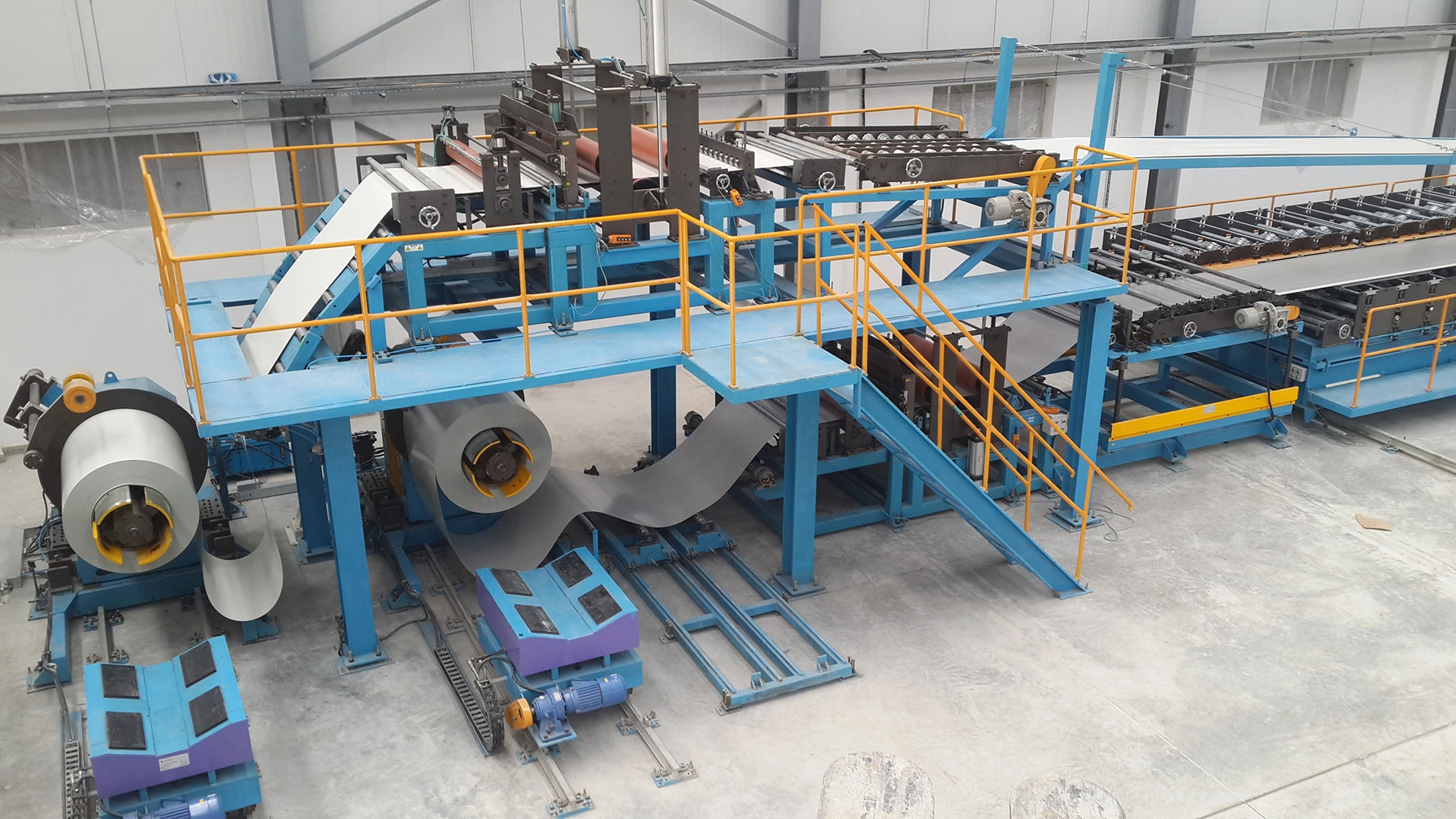

STEP 1

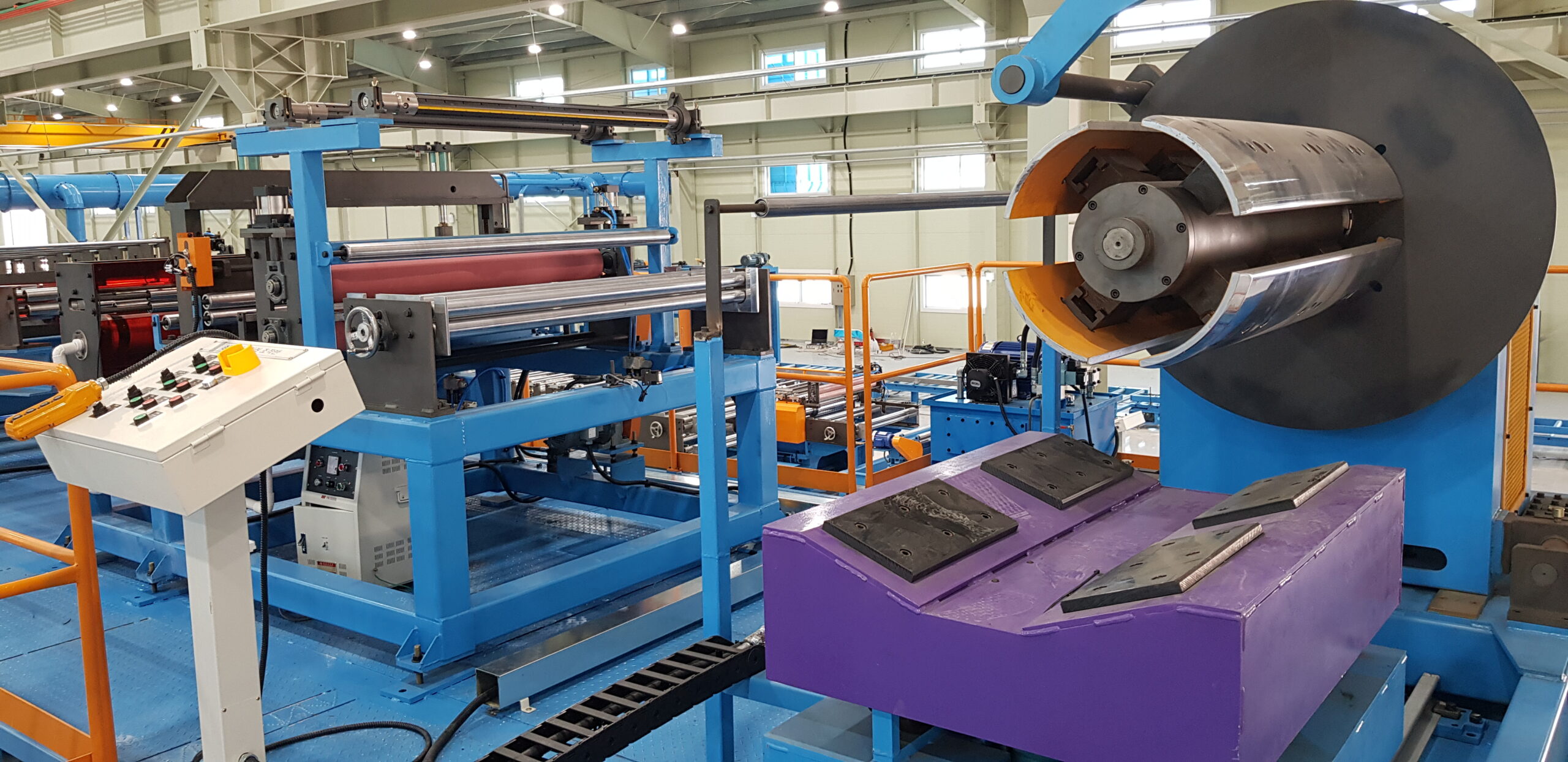

Decoiling System
Continuously feeds PPGI sheets into the sandwich panel line, available in cone- and arm-type configurations.
View Details

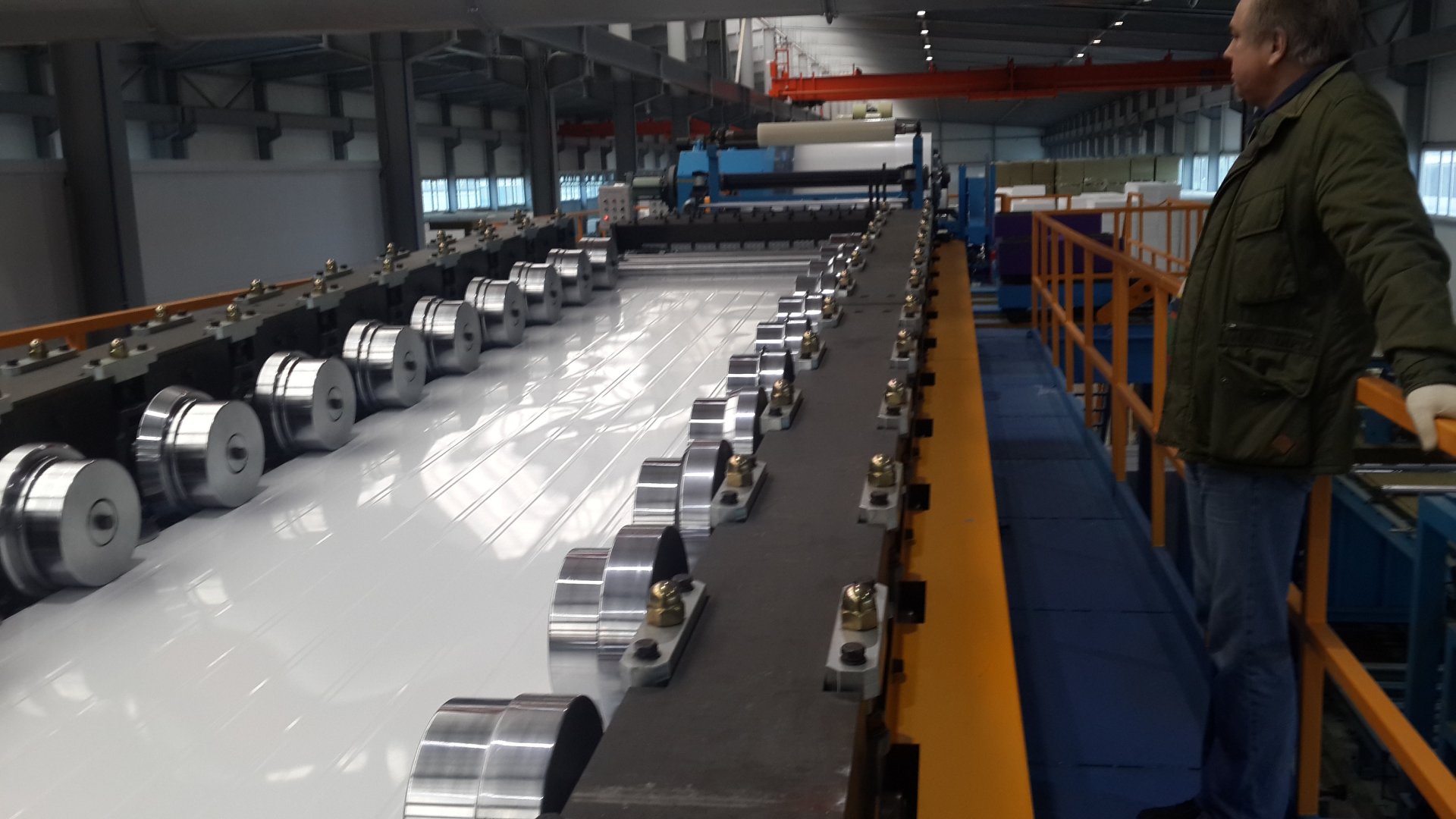

STEP 2

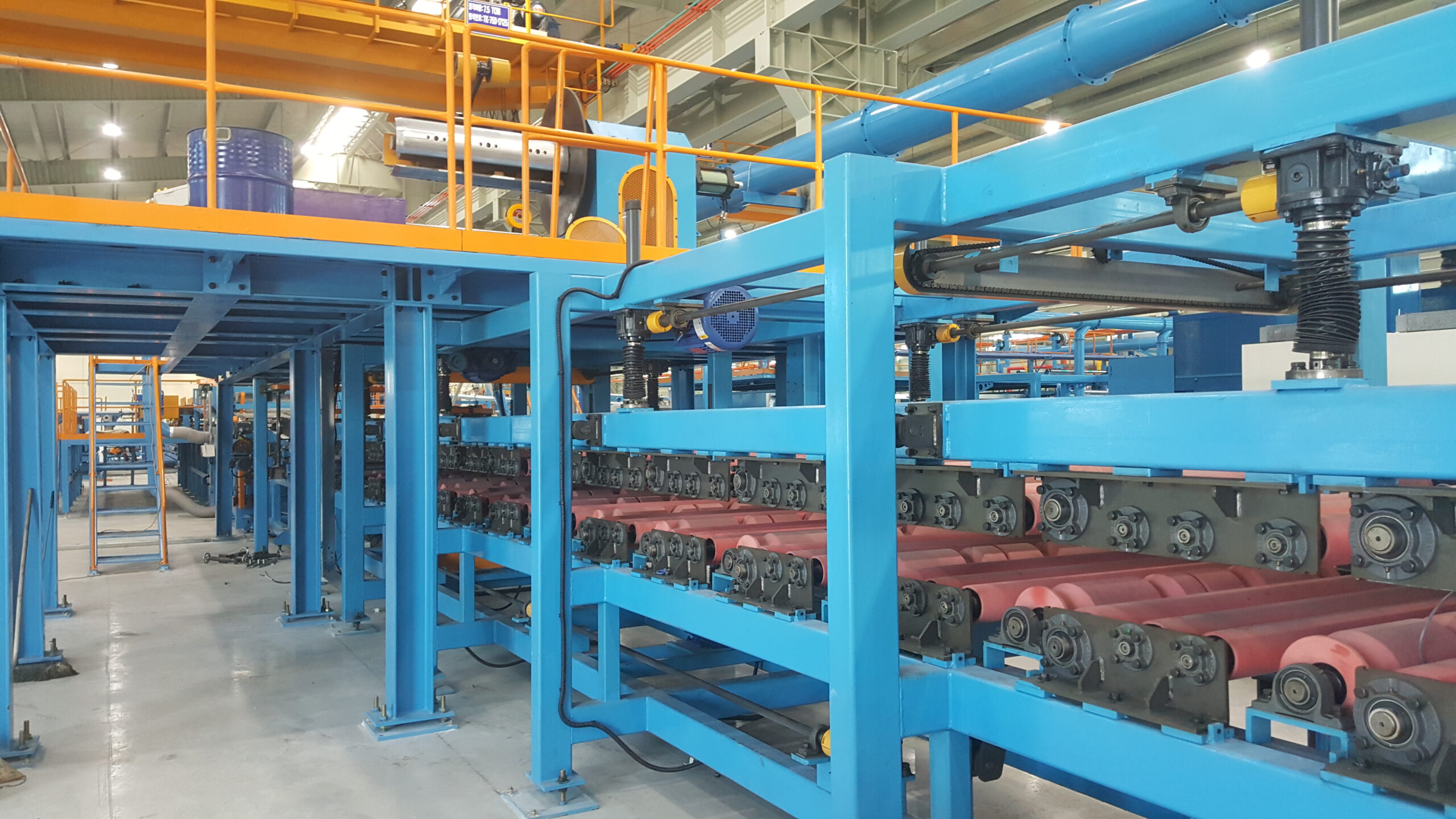

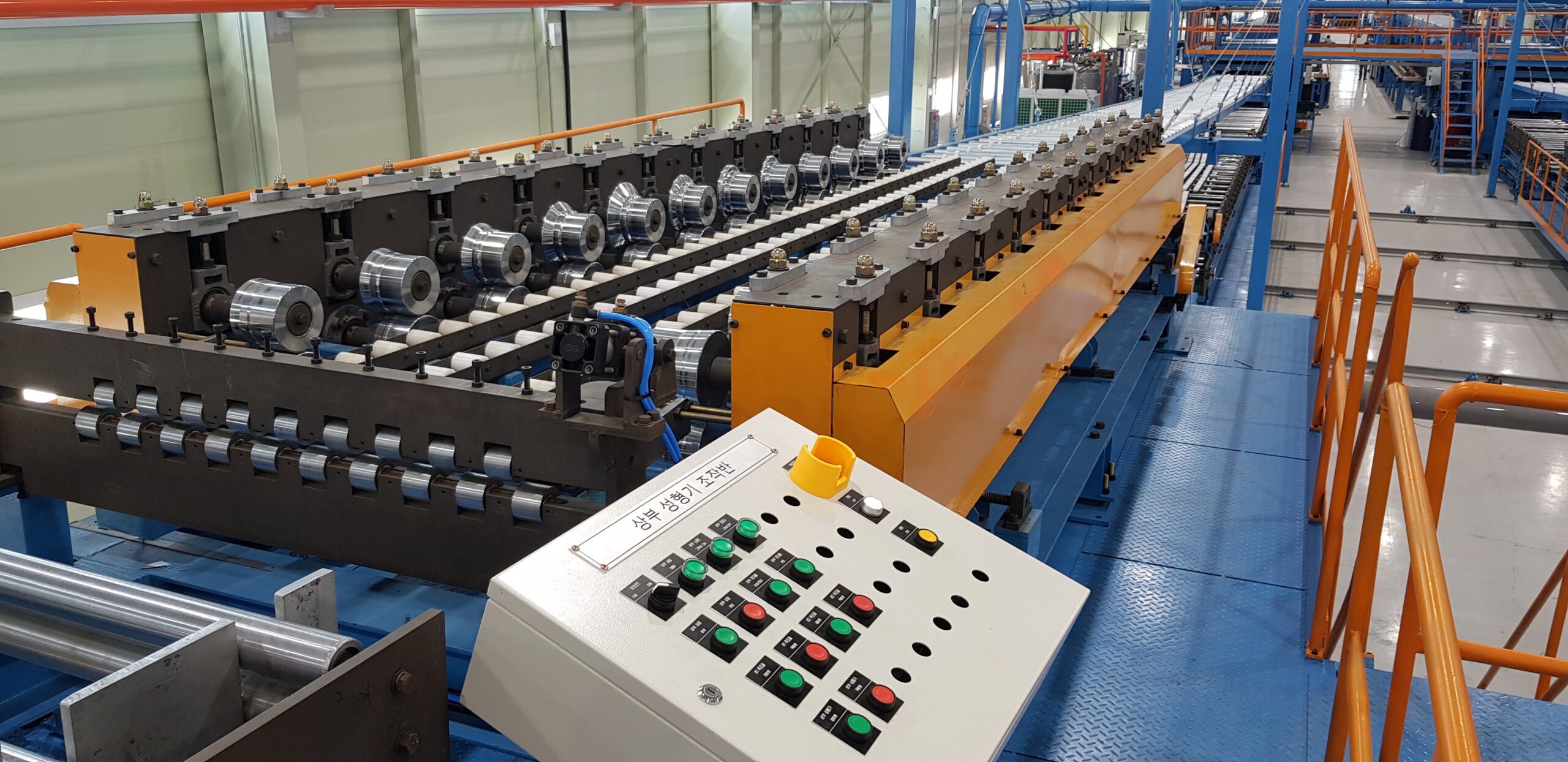

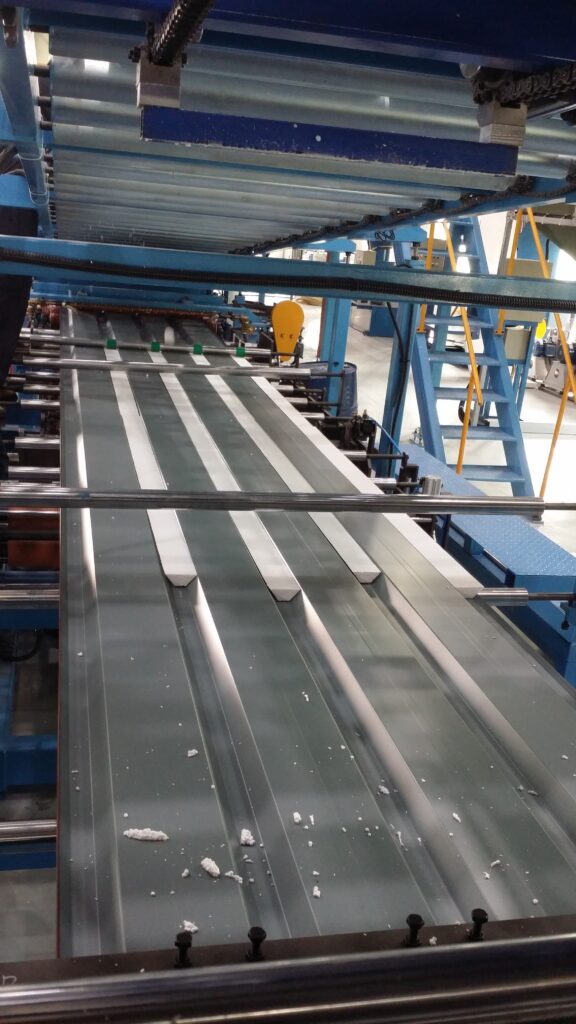

Roll Forming System
Self-developed roll design enables precise shaping with adjustable widths from 500mm to 1,200mm.
View Details

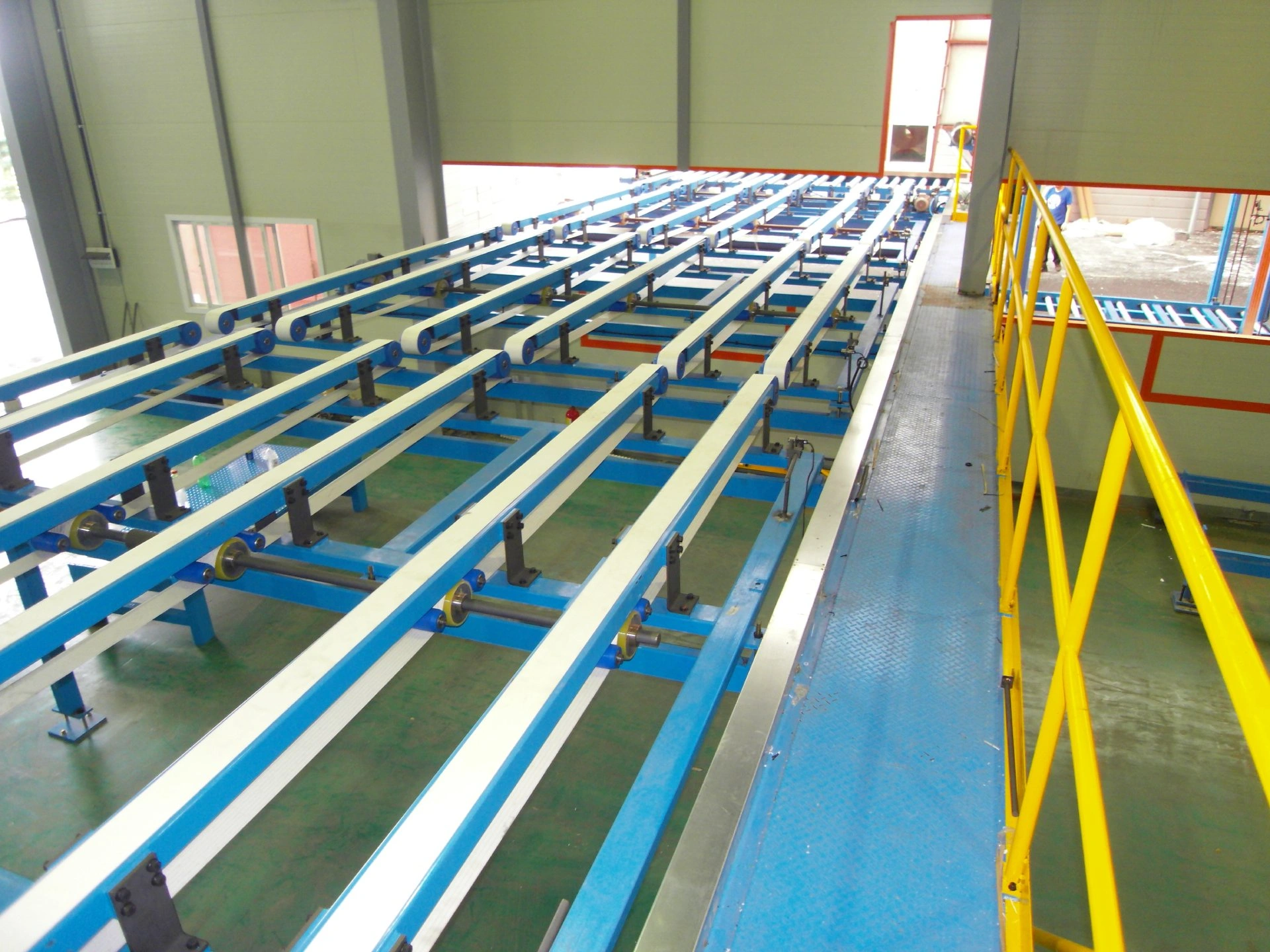

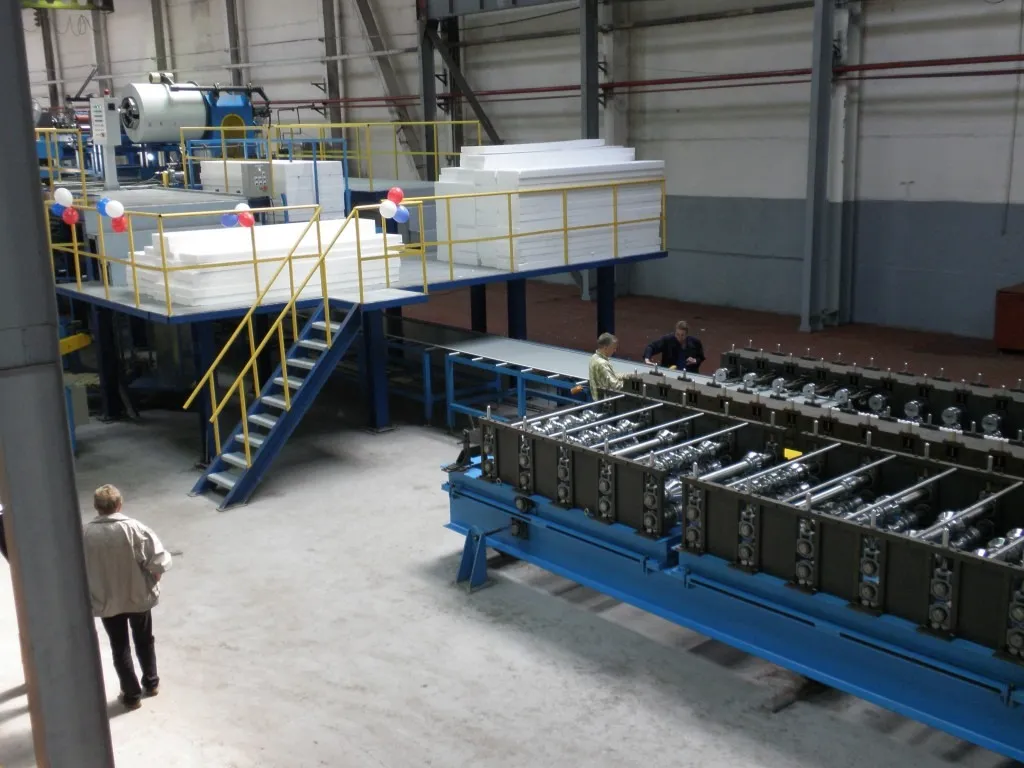

STEP 3

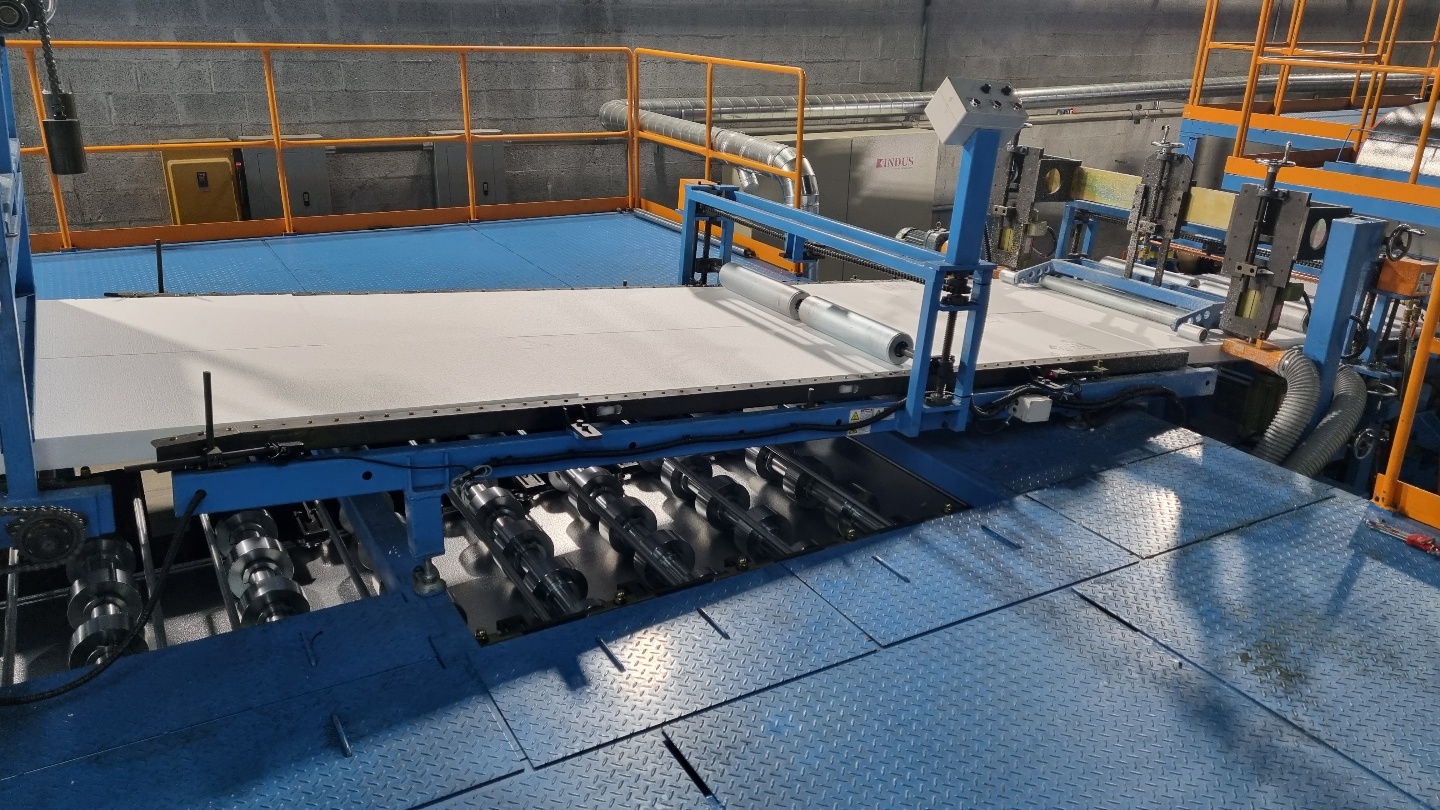

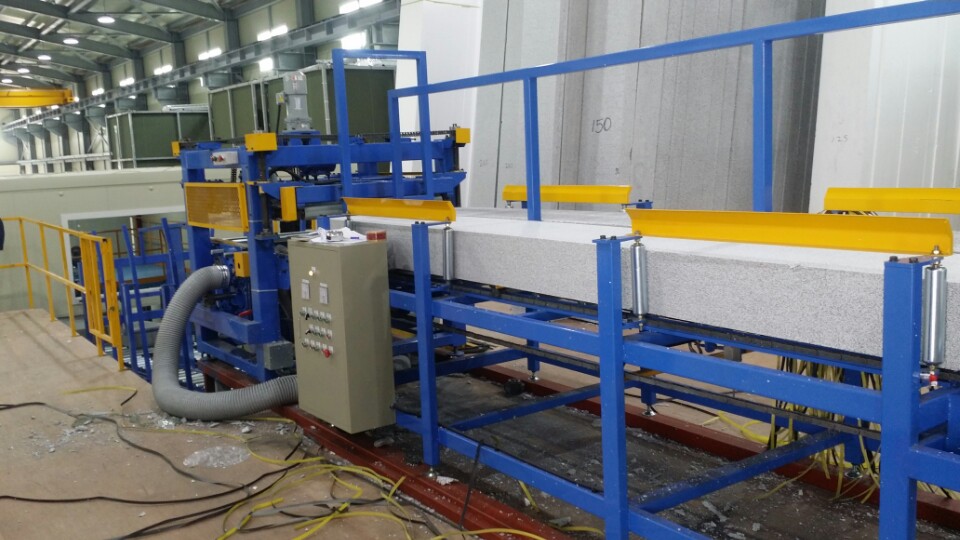

EPS board feeding system
Ensures continuous EPS board feeding with precise alignment and gap-free insulation.
View Details

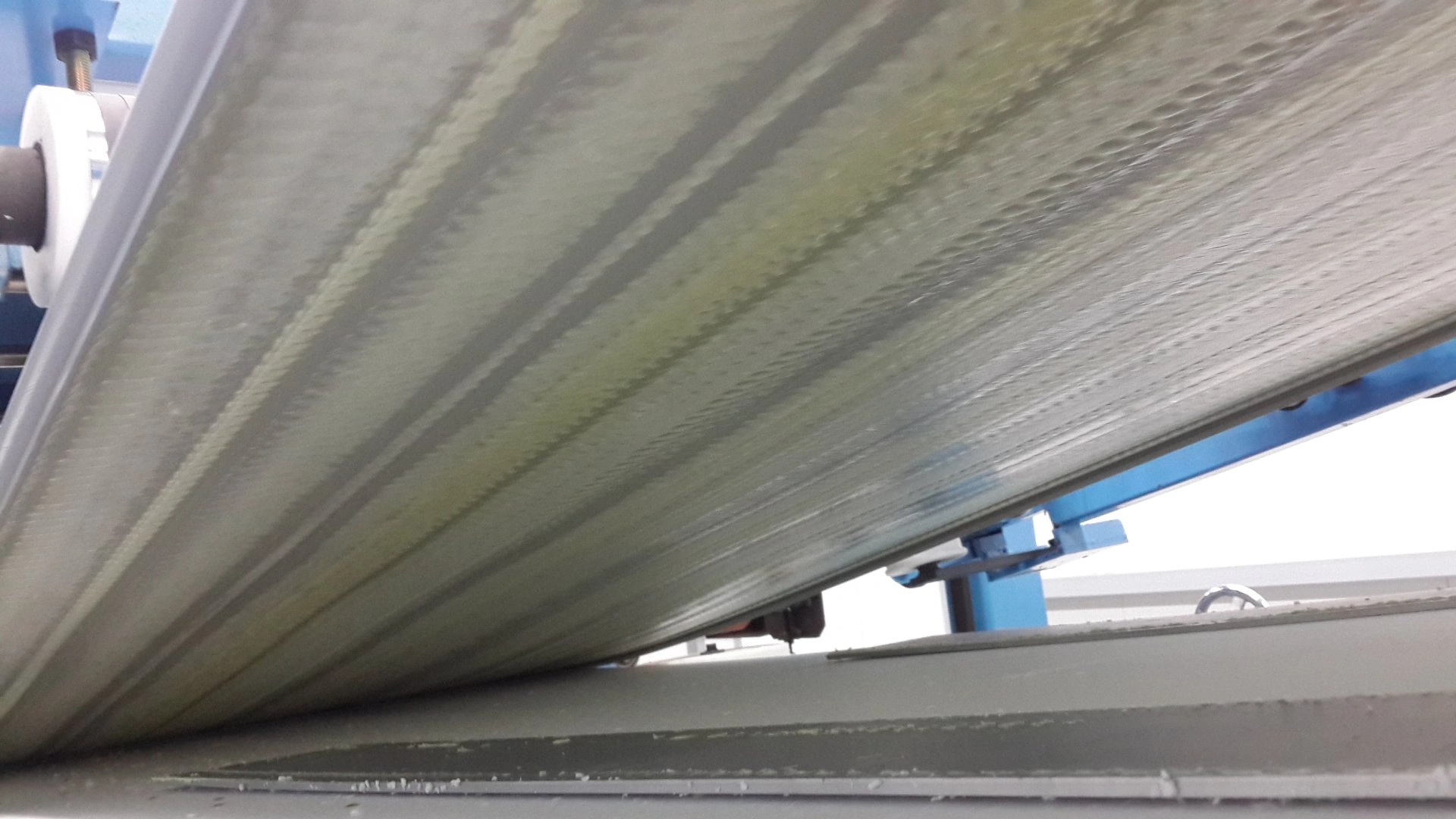

STEP 4

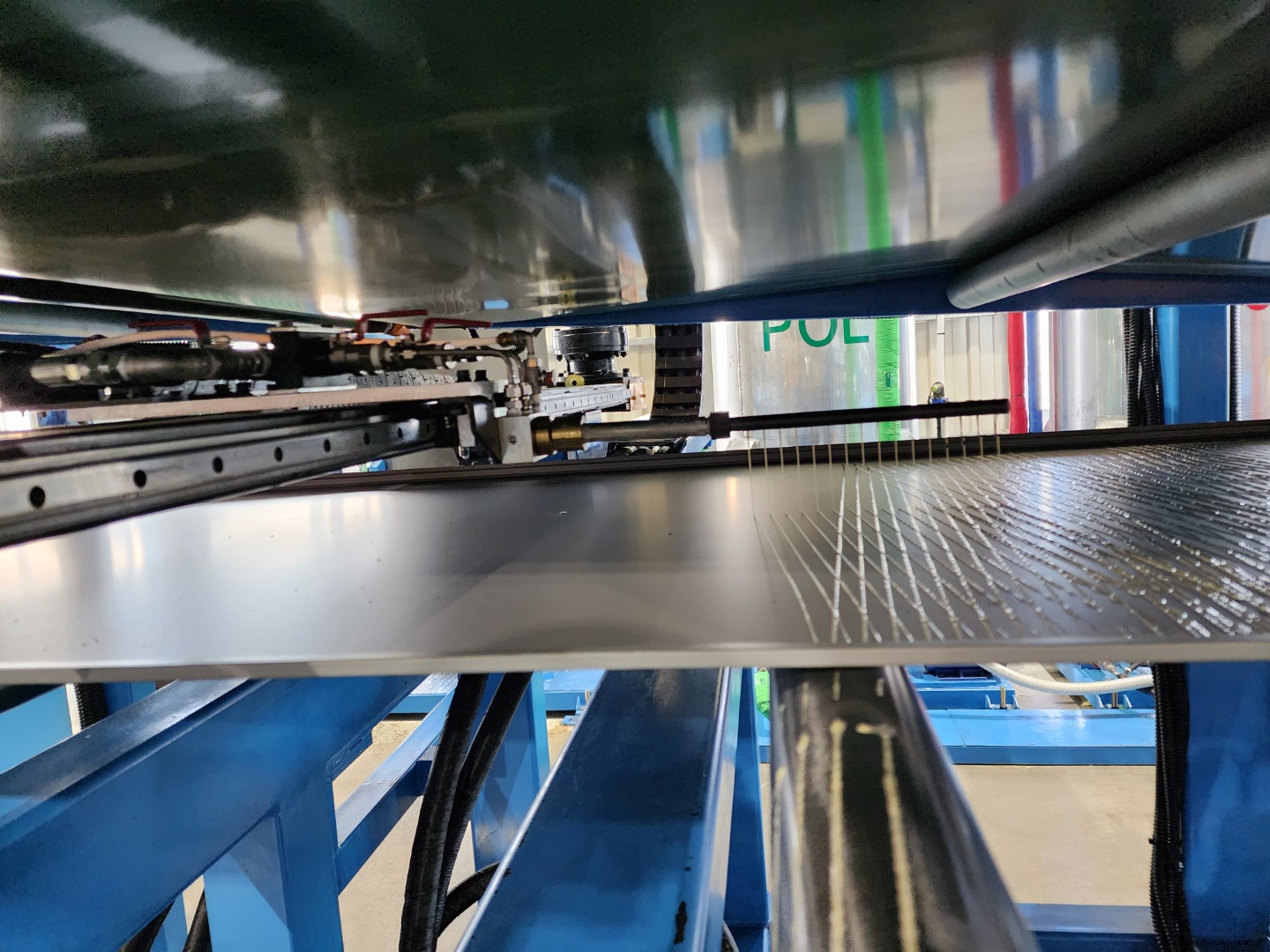

Adhesive(glue) system
Efficient bonding system using wiper or spray methods, balancing cost, durability, and application performance.
View Details

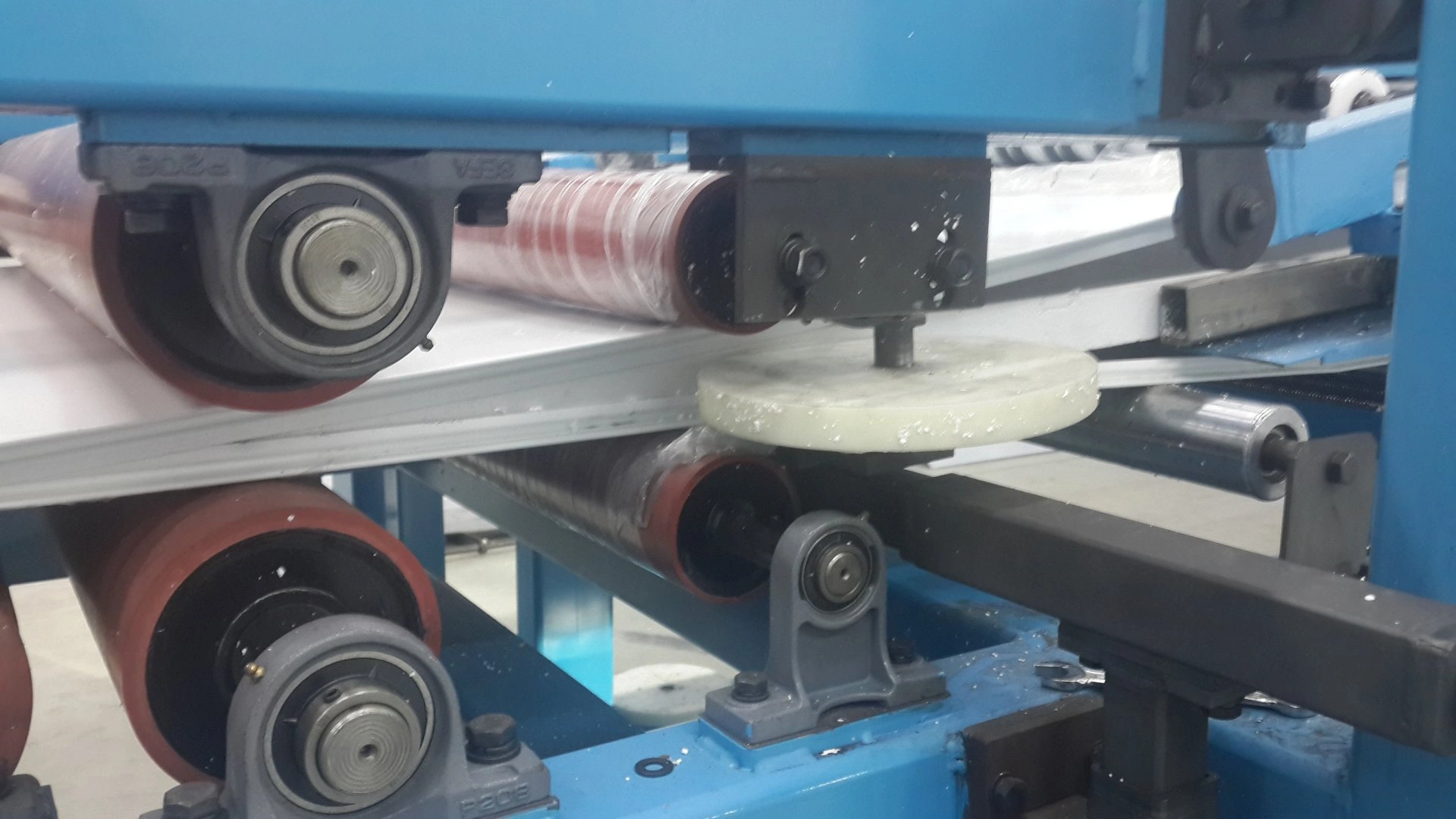

STEP 5
Laminating system
Adjustable laminating system ensures strong bonding while reducing costs and maintaining stable panel thickness.
View Details

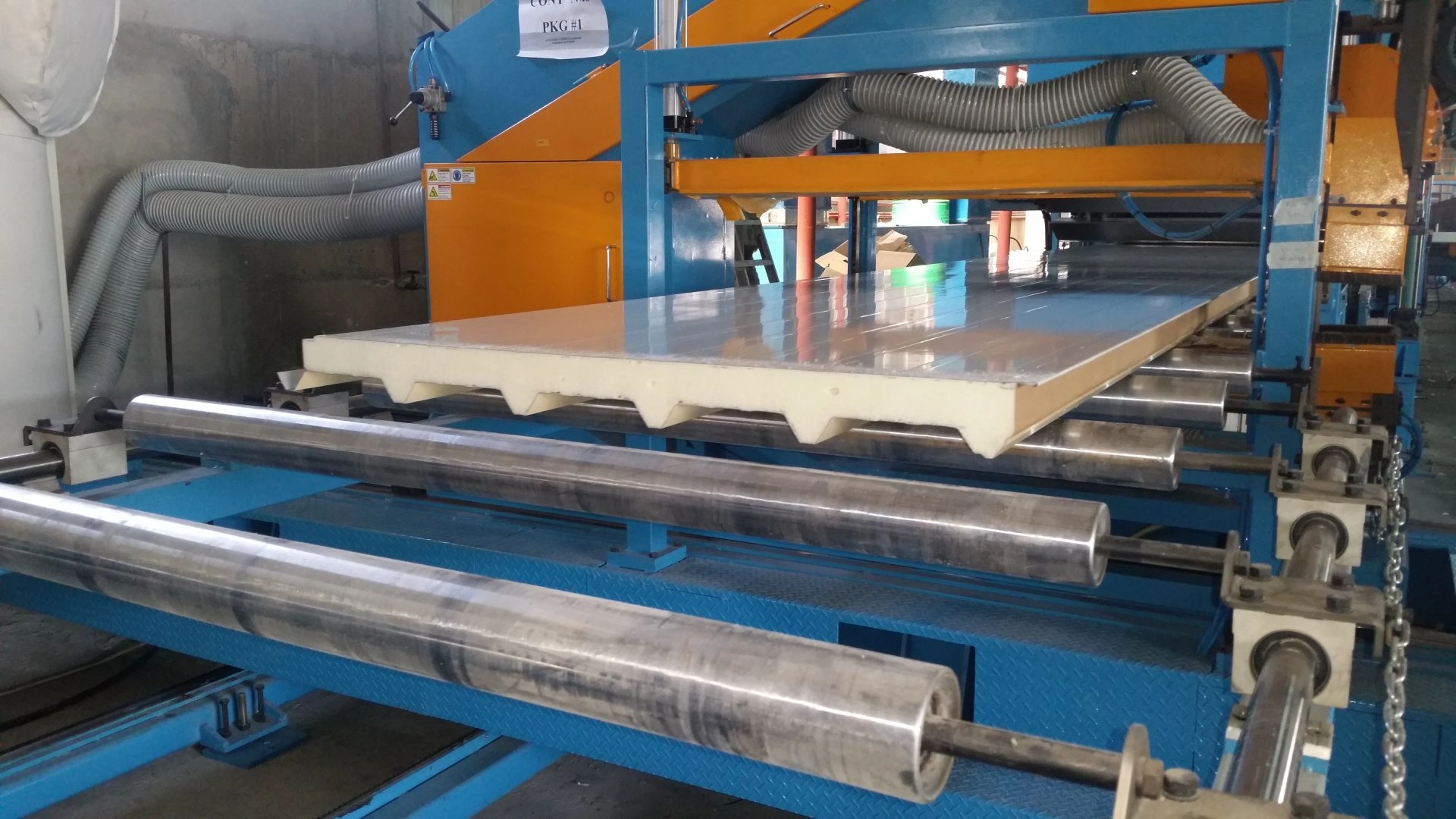

STEP 6
Cutting system
Flexible cutting system with band or circular saw options for precise length control and surface finish.
View Details

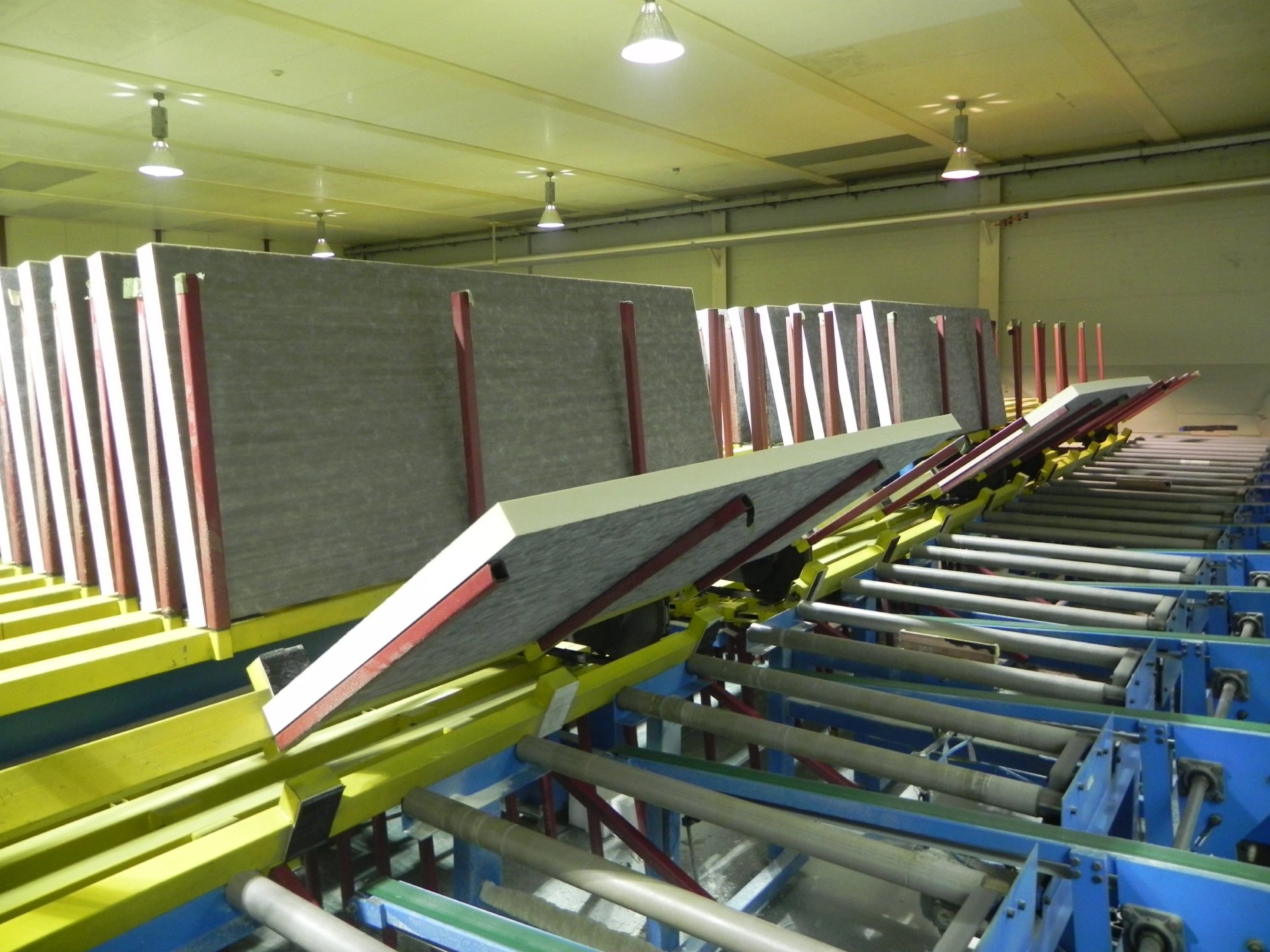

STEP 7
Cooling system
Cooling system stabilizes panel temperature to prevent deformation and ensure surface quality.
View Details
STEP 8

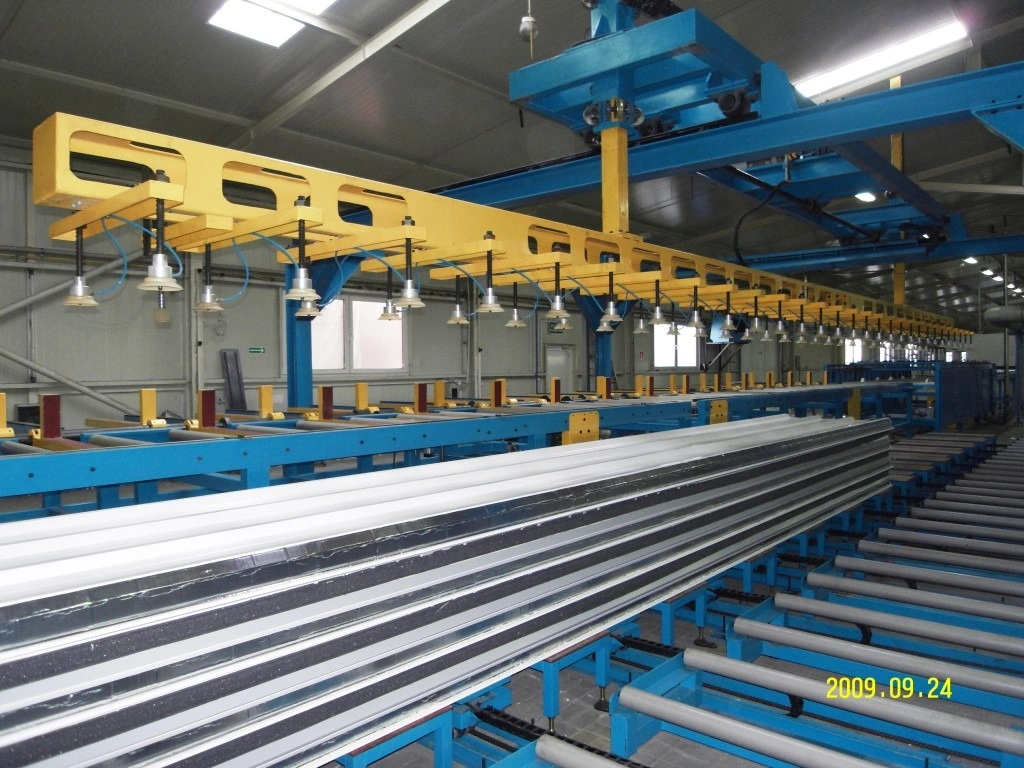

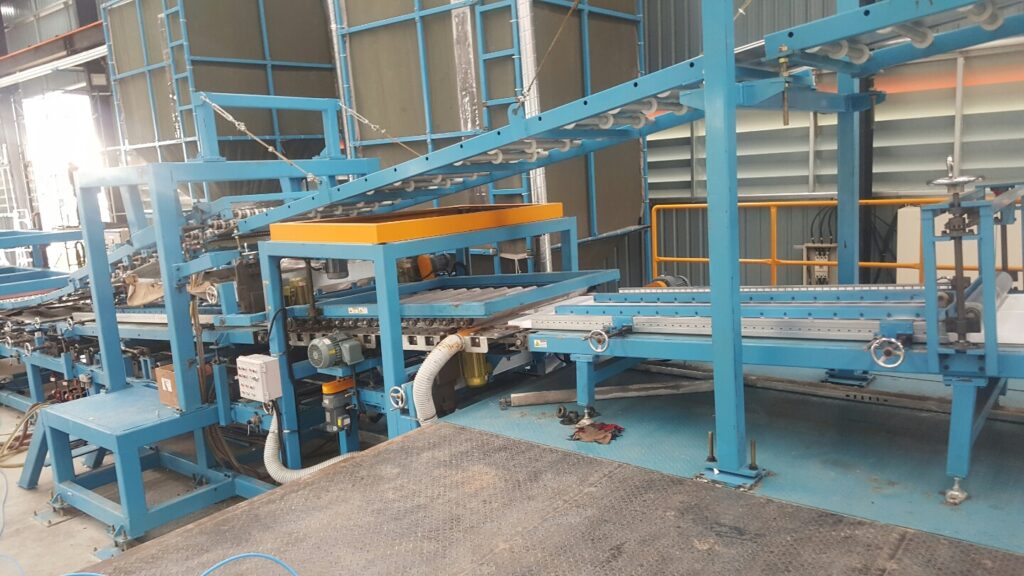

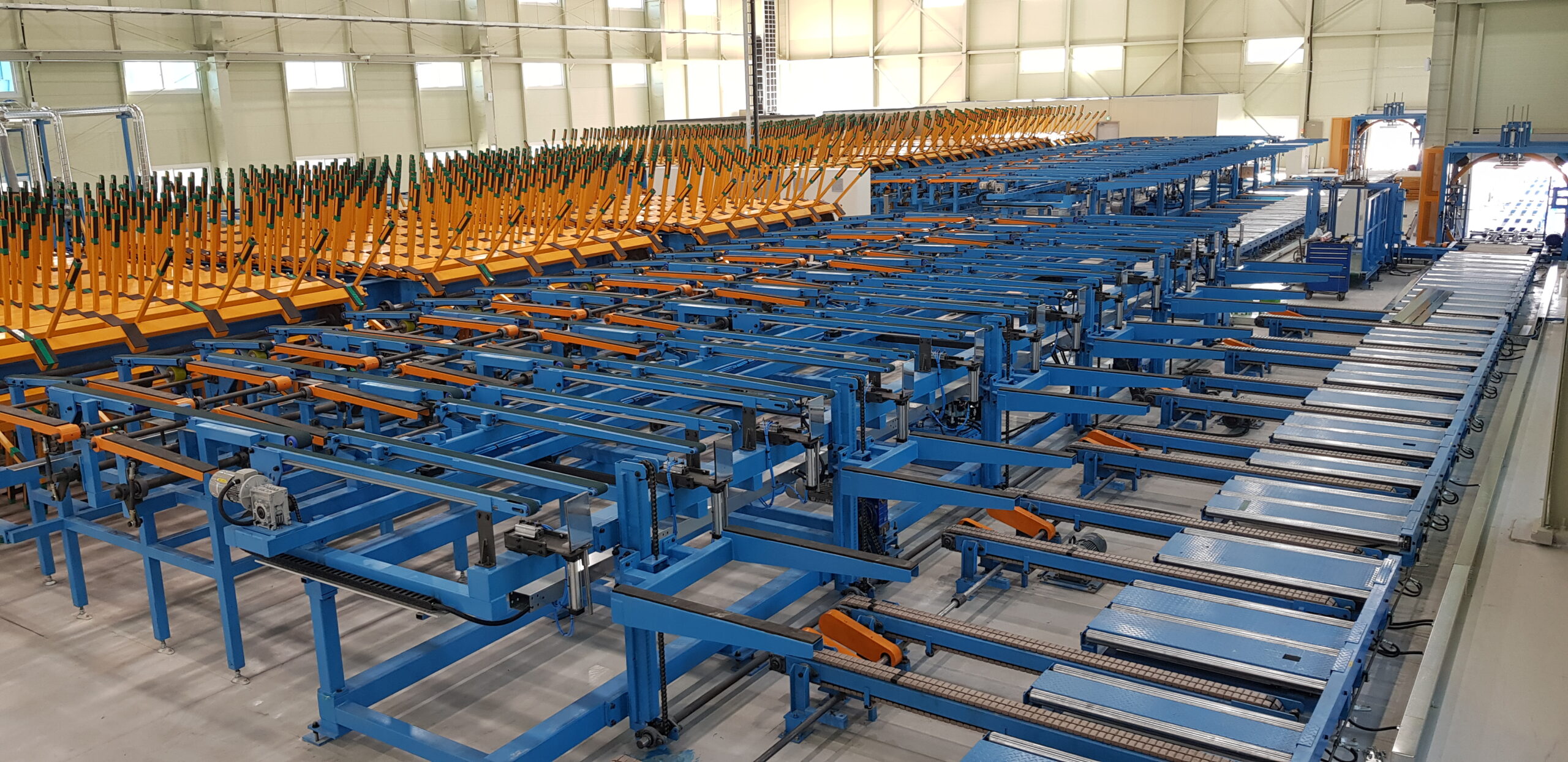

Stacking system
Automated stacking system ensures safe, efficient panel handling and seamless transfer to the wrapping process.
View Details

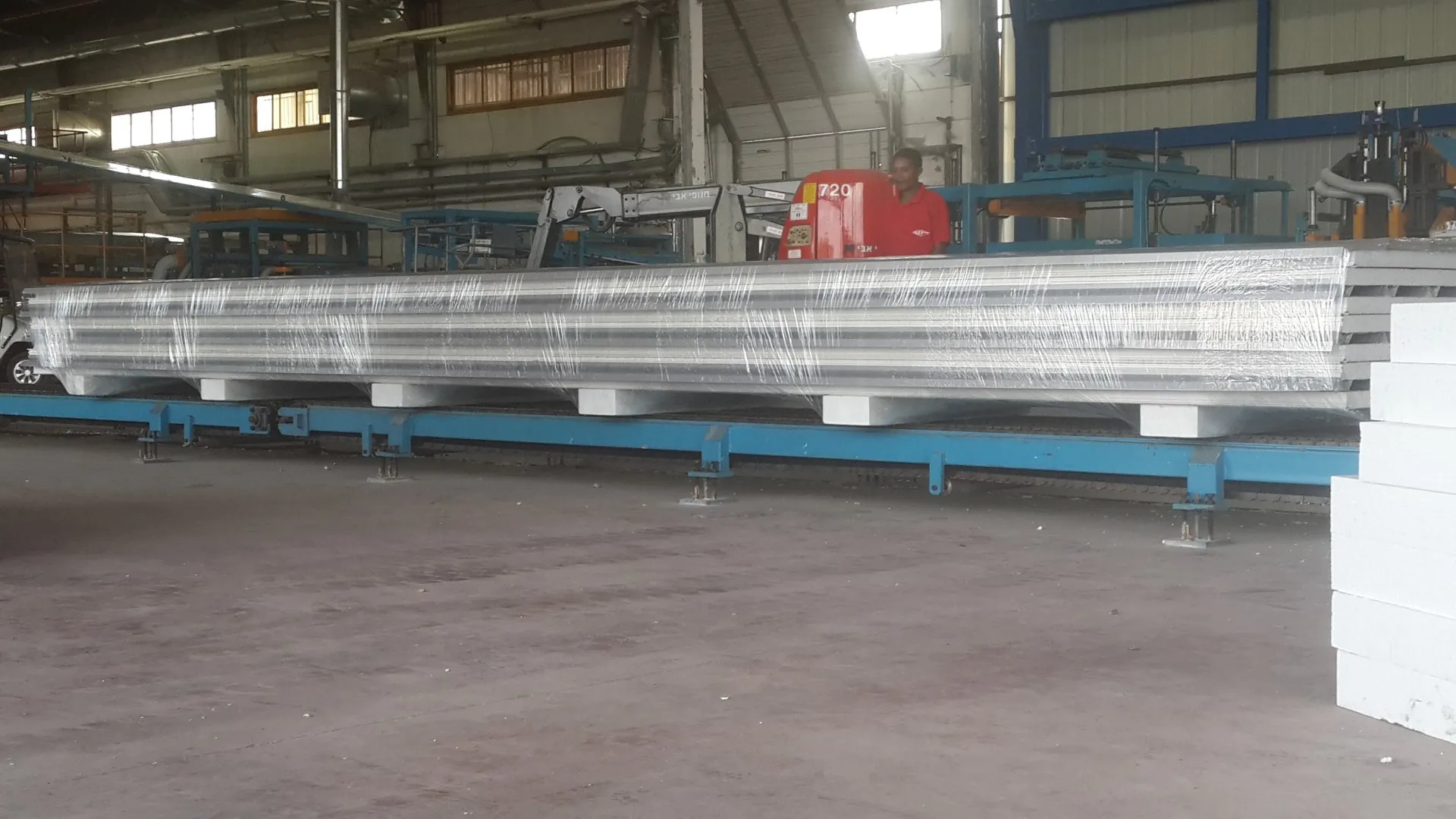

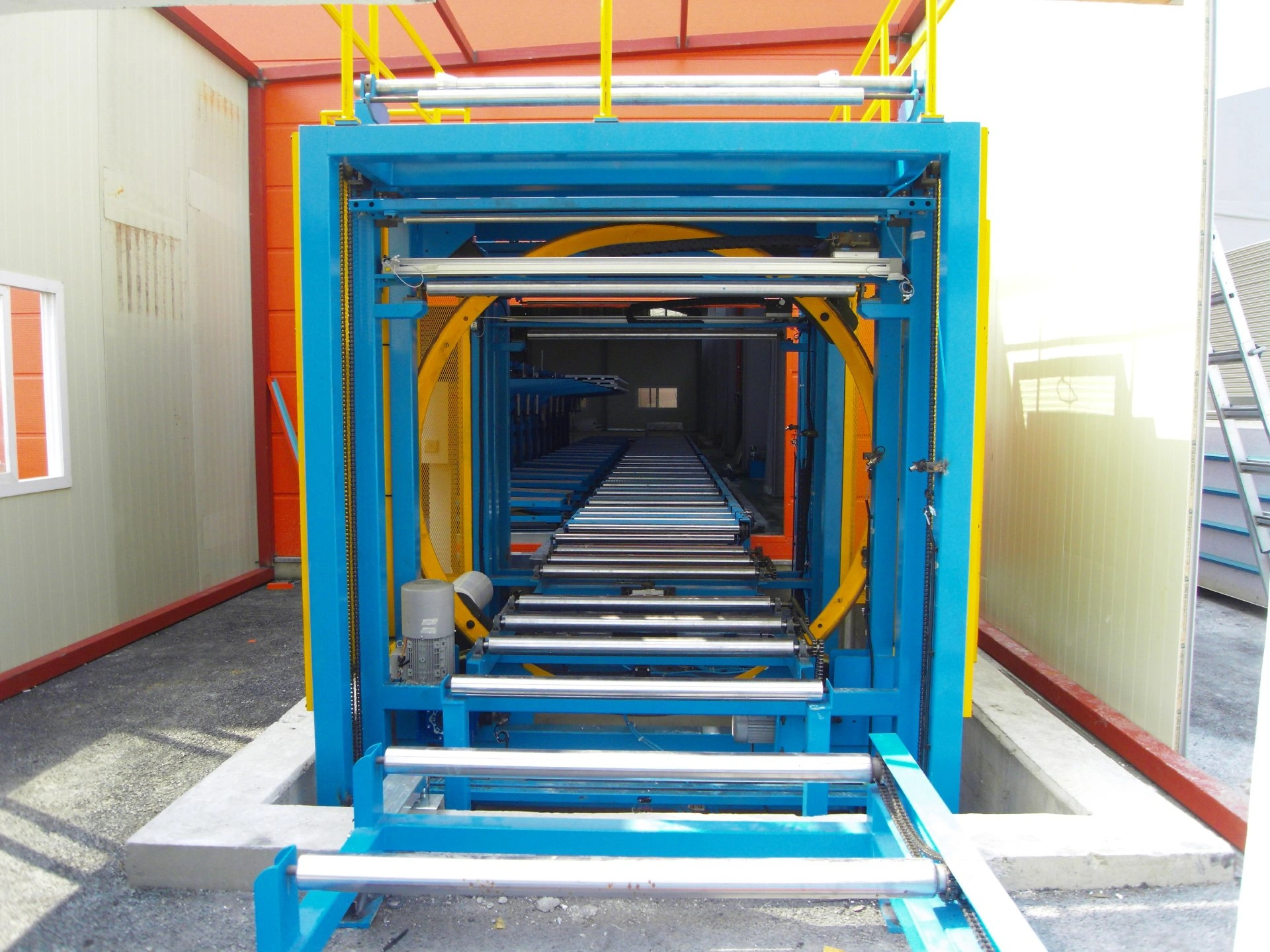

STEP 9

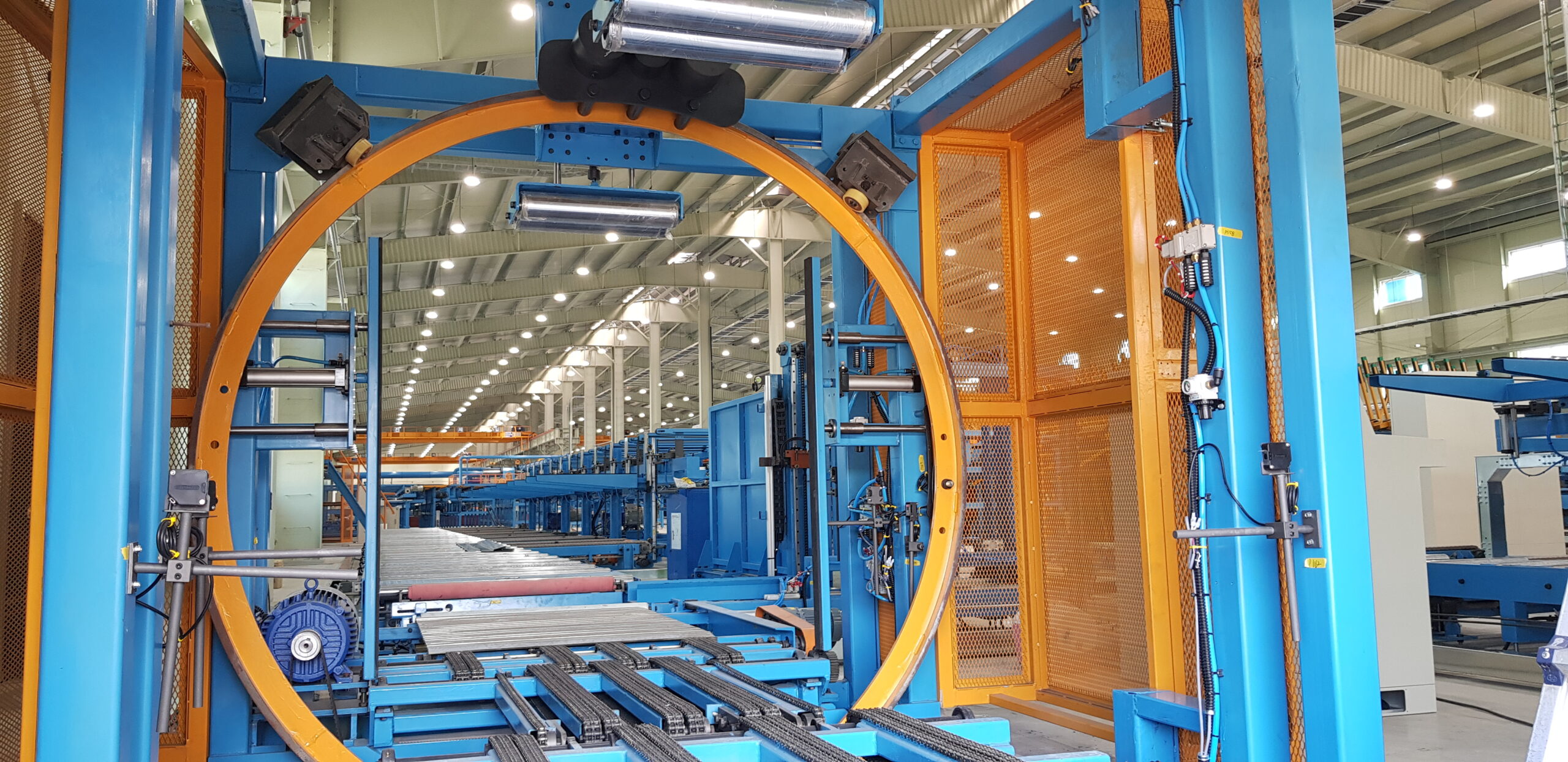

Wrapping system
Wrapping system protects panels from damage and contamination during transport and storage.
View Details

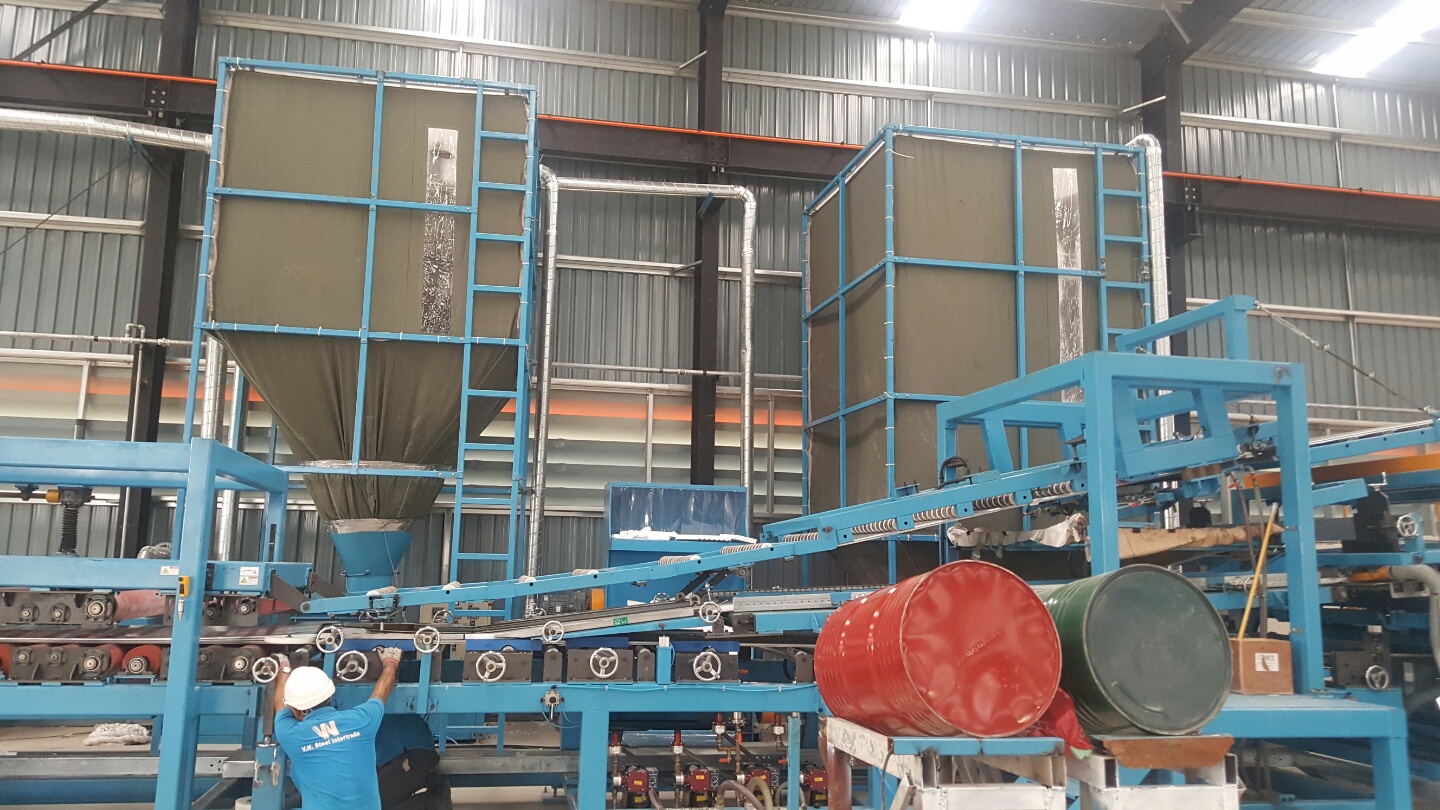

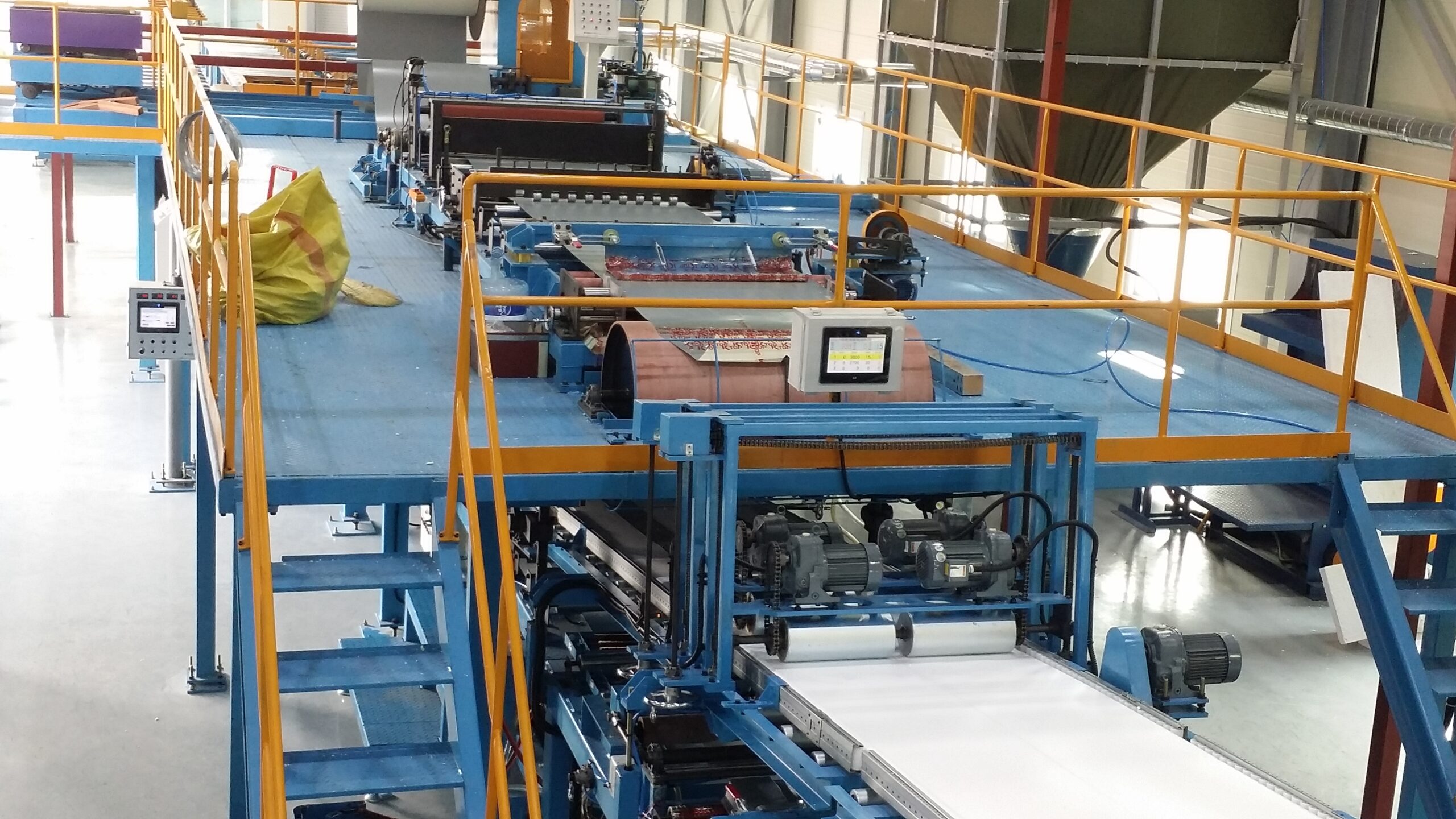

Turnkey Engineering
KINDUS delivers a fully automated EPS sandwich panel production system, optimized for cost-effective manufacturing with reliable performance and continuous output.
We provide complete support from:
• Line composition design (Decoiling / Roll forming / Feeding / Laminating)
• Equipment manufacturing & supply
• Installation & commissioning
• Operator training
• After-sales technical support
Ensures stable operation, low-cost production, and consistent panel quality.
Specification

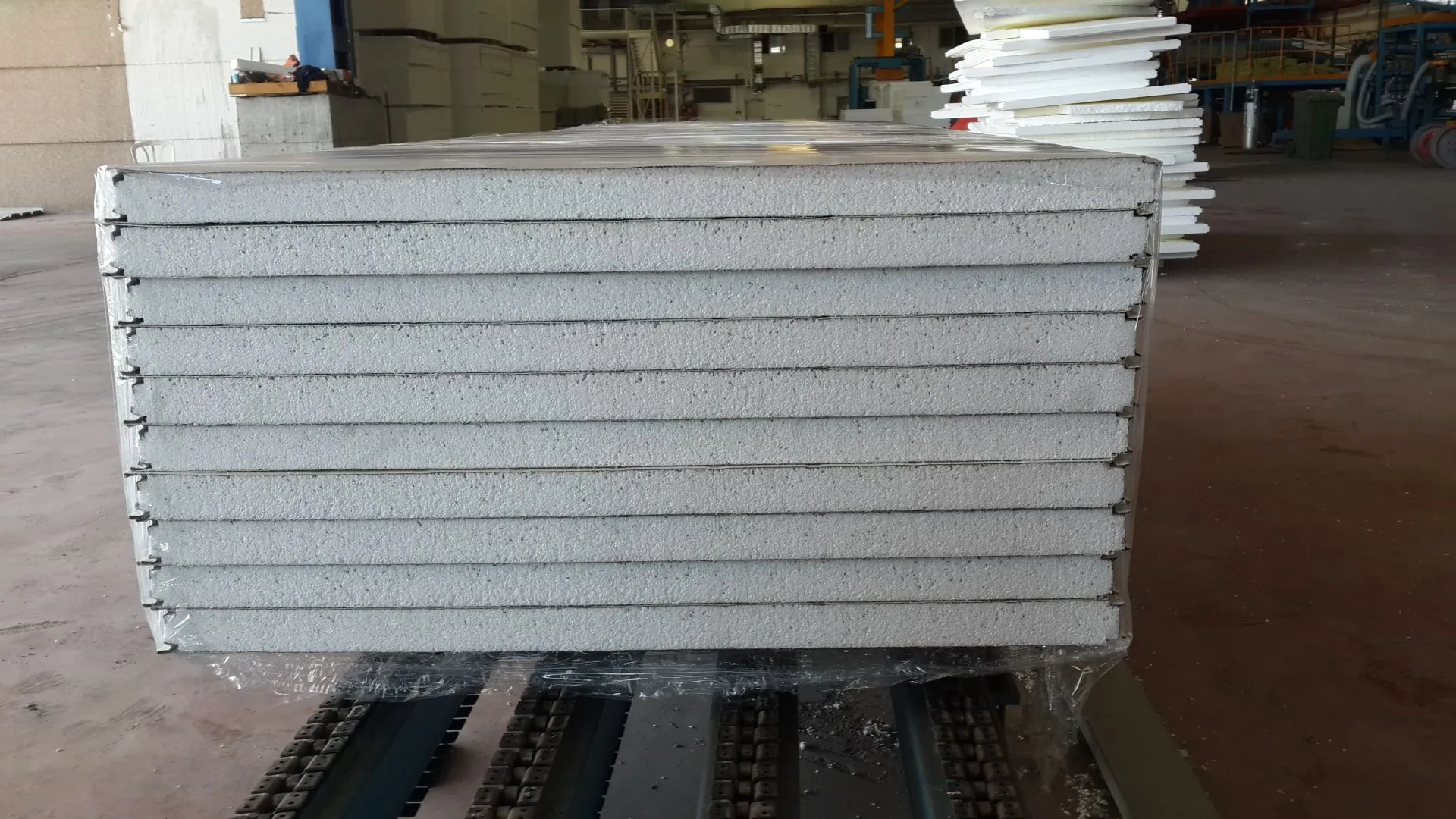

| Kind of products | Interior wall, Exterior wall (Secret fix), Corrugated roof and more | |
|---|---|---|
| Density of core material | Standard 15K | |
| Production speed | Average 4~18m/min | |
| Annual capacity | About 800,000㎡ | |
| Necessary dimension | Approximately W15m x L80m x H7m | |
| Required electric power | About 150kw | |
| Required air pressure | Minimum 6~7bar | |
