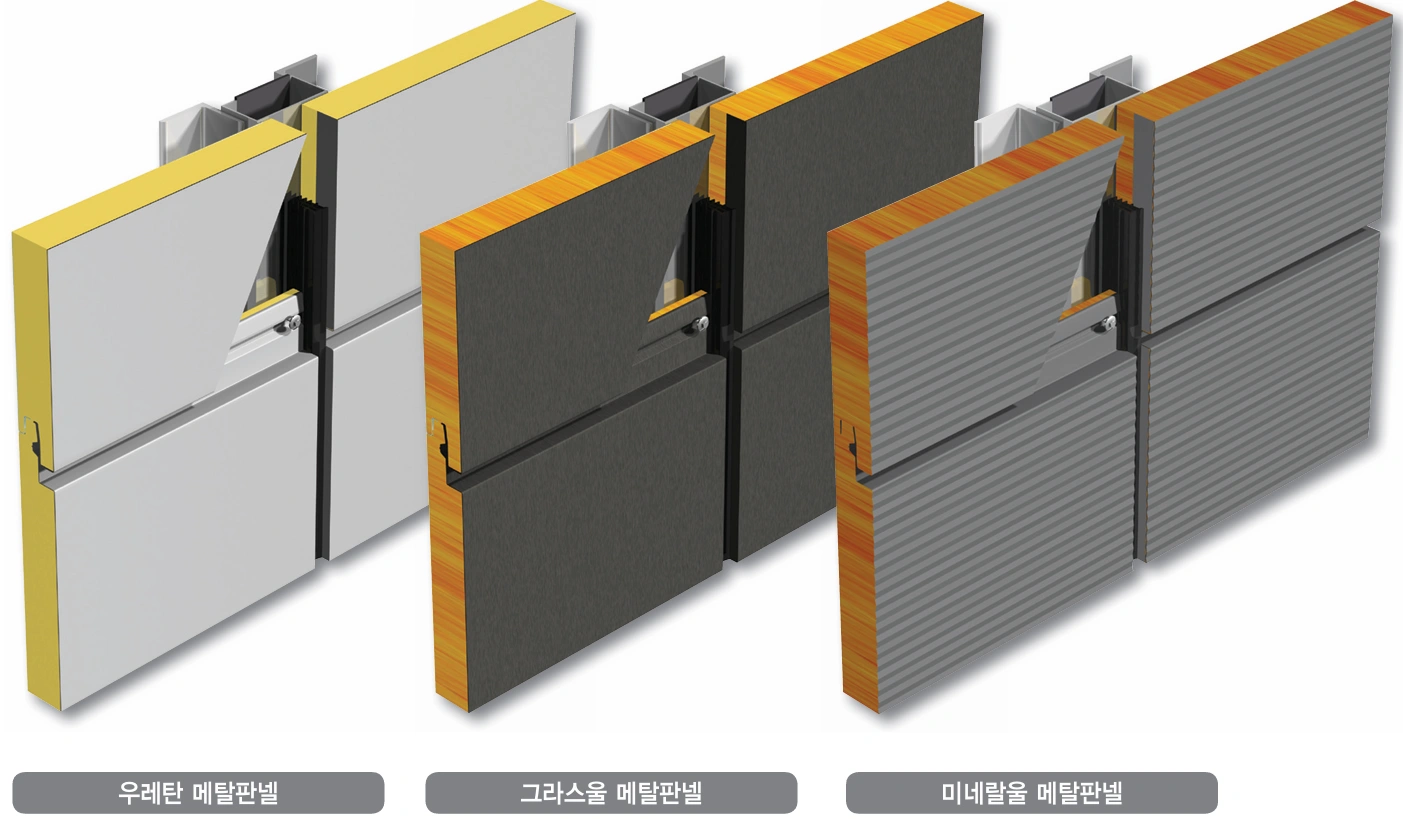

Metal Panel

Metal Panel
Product Lineup

Metal Panel

KINDUS, Metal sandwich panels deliver differentiated exterior solutions that satisfy both functionality and aesthetics, based on excellent weather resistance and a solid, high quality finish.

Features

Create the beautiful structure
As PANELTECH's metal panels are large-scale product which can be produced up to maximum 8 meteres, it can be applied large flat shape, beautiful wave patterns etc on exteiror as per requirements. Accordingly, it is possible to create the luxurious and gorgeous structure.
Maintain the beautiful without pollution for a long time
It is gradually expanding in use because it can create a beautiful exterior while maintaining the advantages of conventional panels, such as thermal insulation, ease of installation, and durability, and as a silicone-free Non-Caulking System, it allows for the maintenance of a clean, stain-free surface on building exterior walls for a long time.
Solution for corrosion problem of structures
Unlike conventional panels that have been limited to industrial buildings, this product offers superior functionality and quality tailored to its characteristics, making it suitable for a wide range of applications from office buildings to cultural facilities, gymnasiums, research institutes, and memorial halls.
It boasts exceptional durability and thermal insulation by fundamentally resolving the structural corrosion caused by condensation, which is the biggest issue with exterior curtain walls.
Simple construction than aluminium composite panel
It allows for the creation of a beautiful exterior that cannot be achieved with standard sandwich panels, and because it is simpler to install than aluminum composite panels, it can reduce construction costs by shortening the construction period and minimizing labor requirements.

Certification

ISO
ISO 9001
ISO 9001
ISO 14001
ISO 14001
KS
Sandwich Panels for Wall
Sandwich Panels for Wall
Sandwich Panels for Roof
Sandwich Panels for Roof

Test Reports

Fire-Resistant Structure Certification
Glass Wool Fire-Resistant Structure Certification – 1 Hour (Interior Wall)
Glass Wool Fire-Resistant Structure Certification – 1 Hour (Interior Wall)
Glass Wool Fire-Resistant Structure Certification – 1 Hour (Interior Wall)
Glass Wool Fire-Resistant Structure Certification – 1 Hour (Exterior Wall)
Glass Wool Fire-Resistant Structure Certification – 30 Minutes (Roof)
Glass Wool Fire-Resistant Structure Certification – 30 Minutes (Roof)
Mineral Wool Fire-Resistant Structure Certification – 30 Minutes (Roof)
Mineral Wool Fire-Resistant Structure Certification – 30 Minutes (Roof)
Non-Combustible Composite Material Certification
GW (48K) Non-combustible Certification
GW (64K) Non-combustible Certification
GW (64K) Non-combustible Certification
Composite Material Non-combustible Sound Absorption Certification (48K)
Composite Material Non-combustible Sound Absorption Certification (48K)
Composite Material Non-combustible Sound Absorption Certification (64K)

Specifications

MaterialsOuter Sheet0.5 ~ 0.8 mm Silicone Coated Steel Sheet
Inner Sheet0.5 mm Pre Painted Galvanized Steel Sheet
Core MaterialGlass Wool, Mineral Wool
DimensionsWidth (mm)(G/W, M/W) 400~1000
(PIR) 800 900 1000
Length (m)2.0 ~ 18.0
Thickness (mm)(G/W, M/W) 50, 75, 100, 125 135 150 180 200
(PIR) 50, 75, 100, 125, 150

Construction References (Project Cases)

Eumseong Gunwoo Factory Site
Eumseong Gunwoo Factory Site
Dongshin IN&C SINL Site
Dongshin IN&C SINL Site
Dongshin Panel Juan DH Biz Tower Phase 2 Knowledge Industry Center
Dongshin Panel Juan DH Biz Tower Phase 2 Knowledge Industry Center
Samsung Malaysia Site
Samsung Malaysia Site
Seongbo Metal Yeongjong International City Complex Facility
Seongbo Metal Yeongjong International City Complex Facility
Durim Construction R&D Center / Songdo Tennis Court New Construction
Durim Construction R&D Center / Songdo Tennis Court New Constructio
Icheon Doji Logistics Center
Icheon Doji Logistics Center
Aseong Industrial Development Gimpo Logistics Center
Aseong Industrial Development Gimpo Logistics Center
Eunsung E&C Boryeong Power Plant
Ensuing E&C Boryeong Power Plant
Icheon Sebang Logistics
Icheon Sebang Logistics
Dongshin P&P Tudung District Site
Dongshin P&P Tudung District Site
Jinhae Highland Site
Jinhae Highland Site
Dongshin P&P Wonchang-dong H-2,4 Logistics Center
Dongshin P&P Wonchang-dong H-2,4 Logistics Center
Dongshin E&C Yongin Namsa Site
Dongshin E&C Yongin Namsa Site
Incheon Seoknam-dong Innovation Logistics Center
Incheon Seoknam-dong Innovation Logistics Center
Dongshin P&P Sinheung-dong Site
Dongshin P&P Sinheung-dong Site
Gimpo M93 PFV SMART Logistics Center 2
Gimpo M93 PFV SMART Logistics Center 2
Suwon Hodong Elementary School
Suwon Hodong Elementary School
SK Networks Metropolitan Area Logistics Center
SK Networks Metropolitan Area Logistics Center
Hallim Precision Yeongjongdo Hyundai Glovis Site
Hallim Precision Yeongjongdo Hyundai Glovis Site

Tech

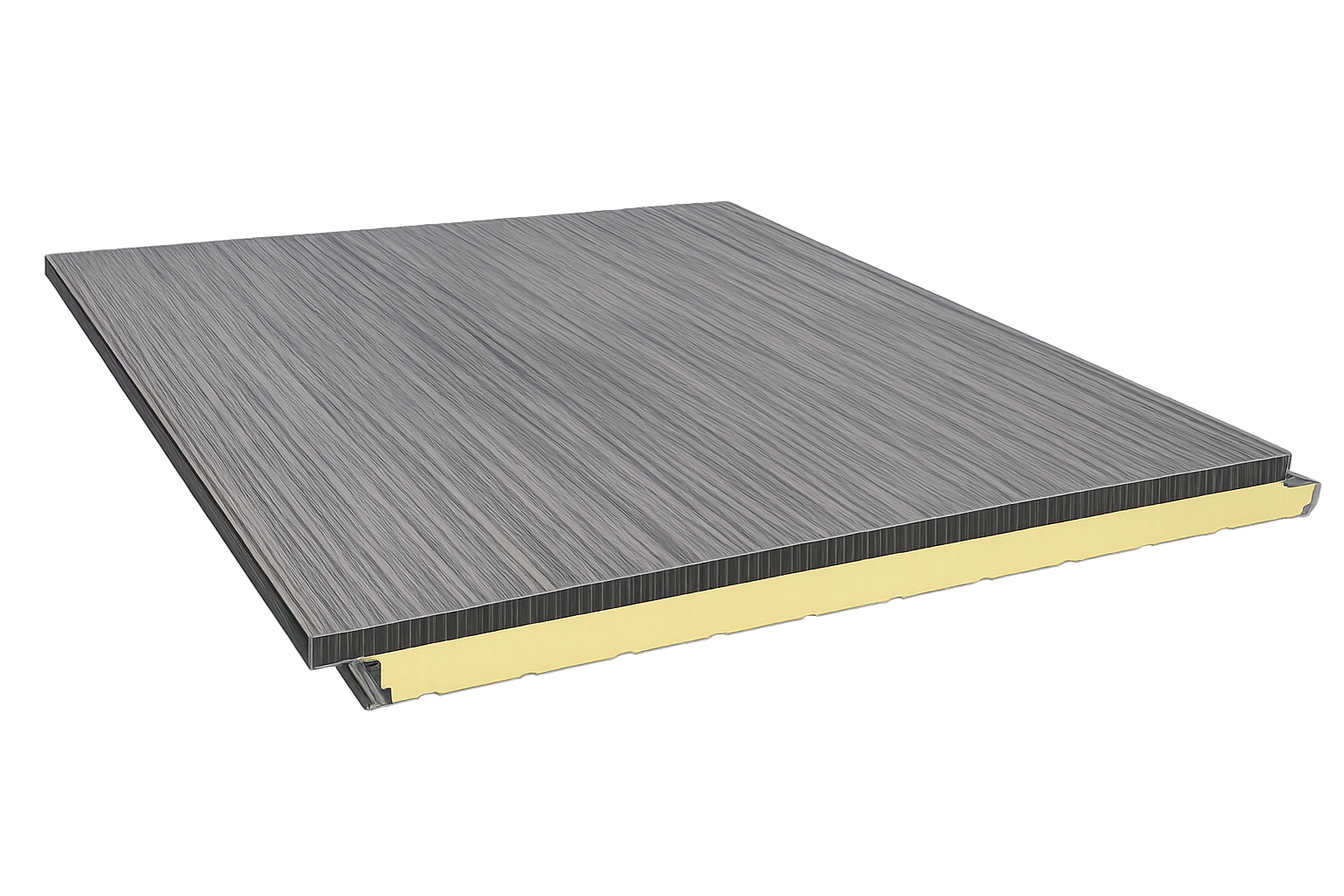

PME

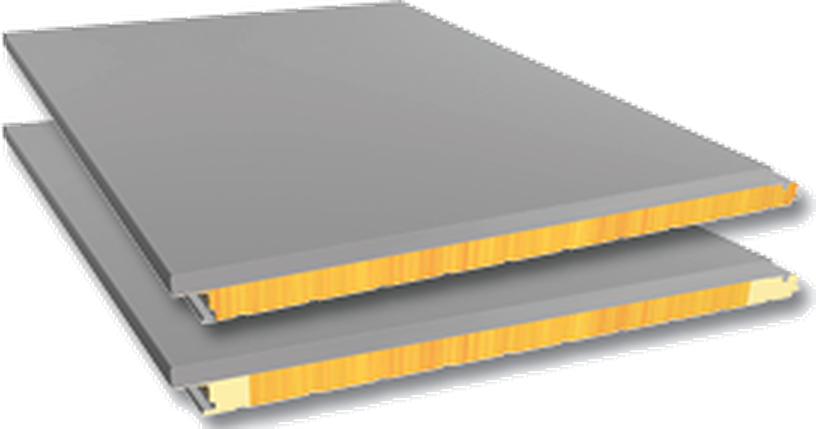

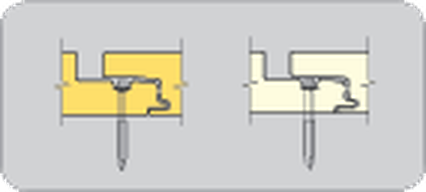

GME_GSME

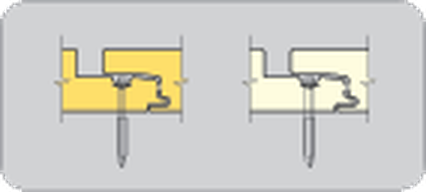

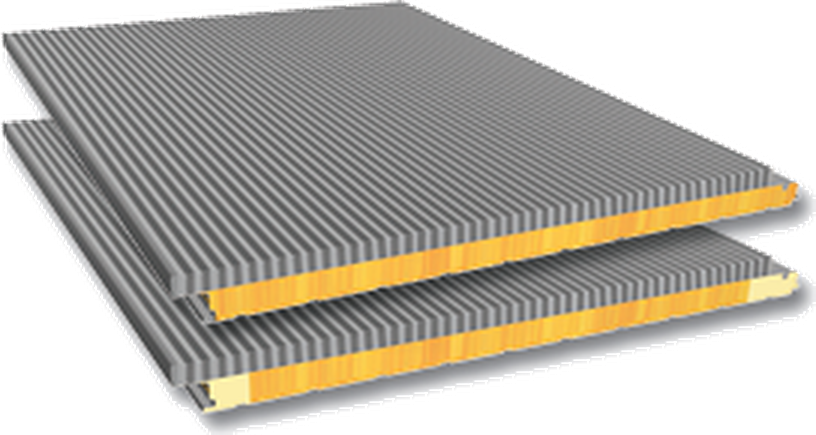

GMR_GSMR

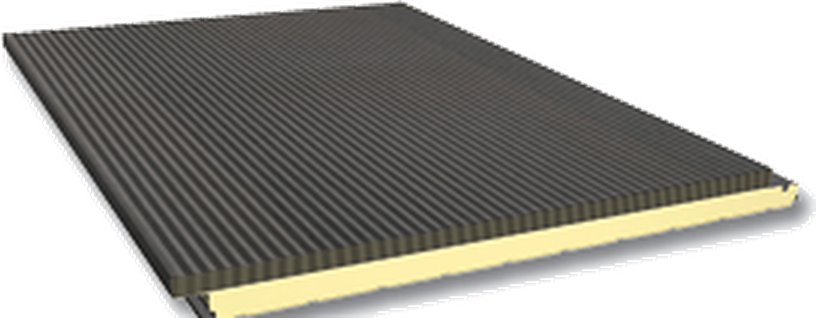

PMR
