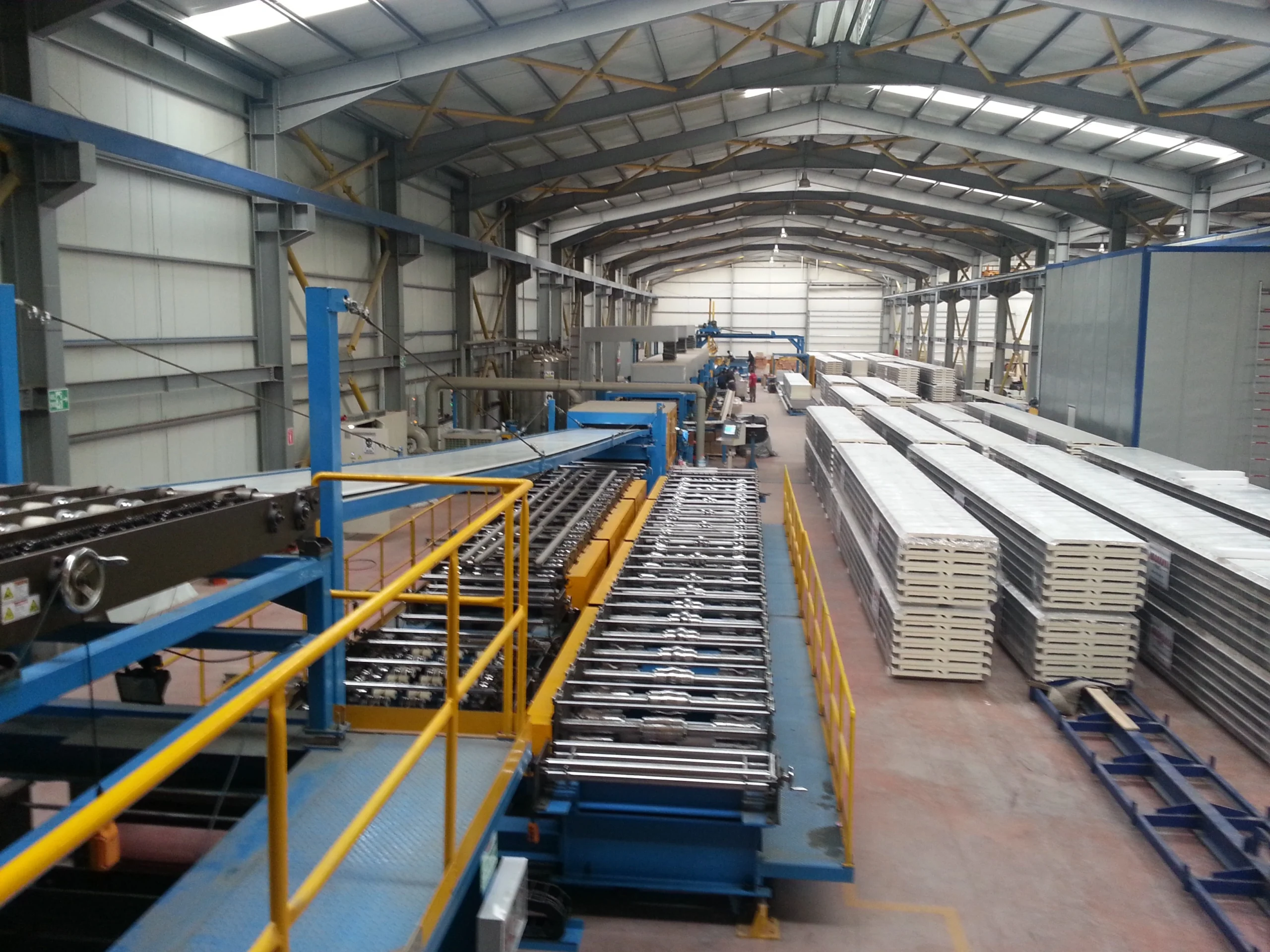

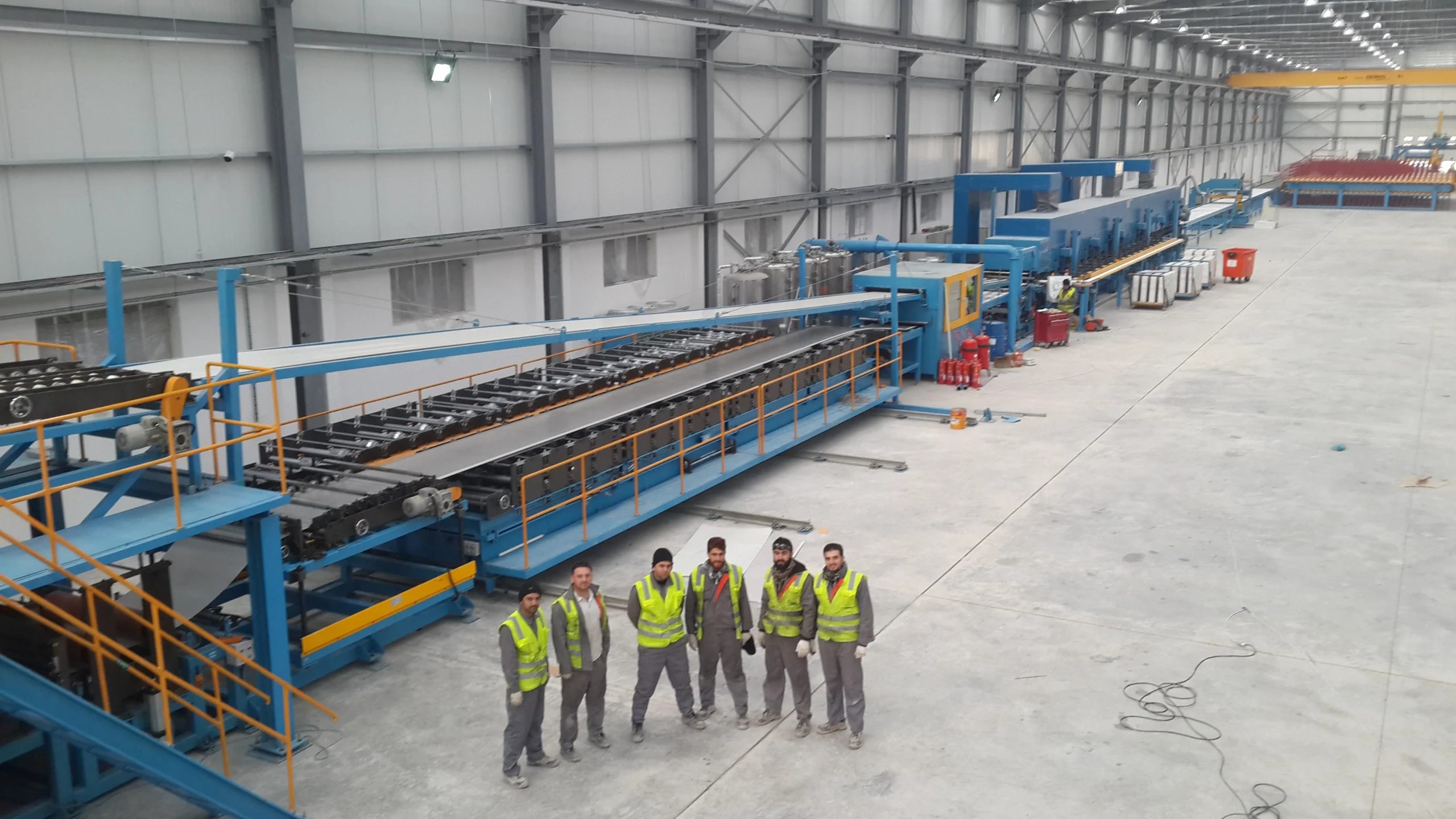

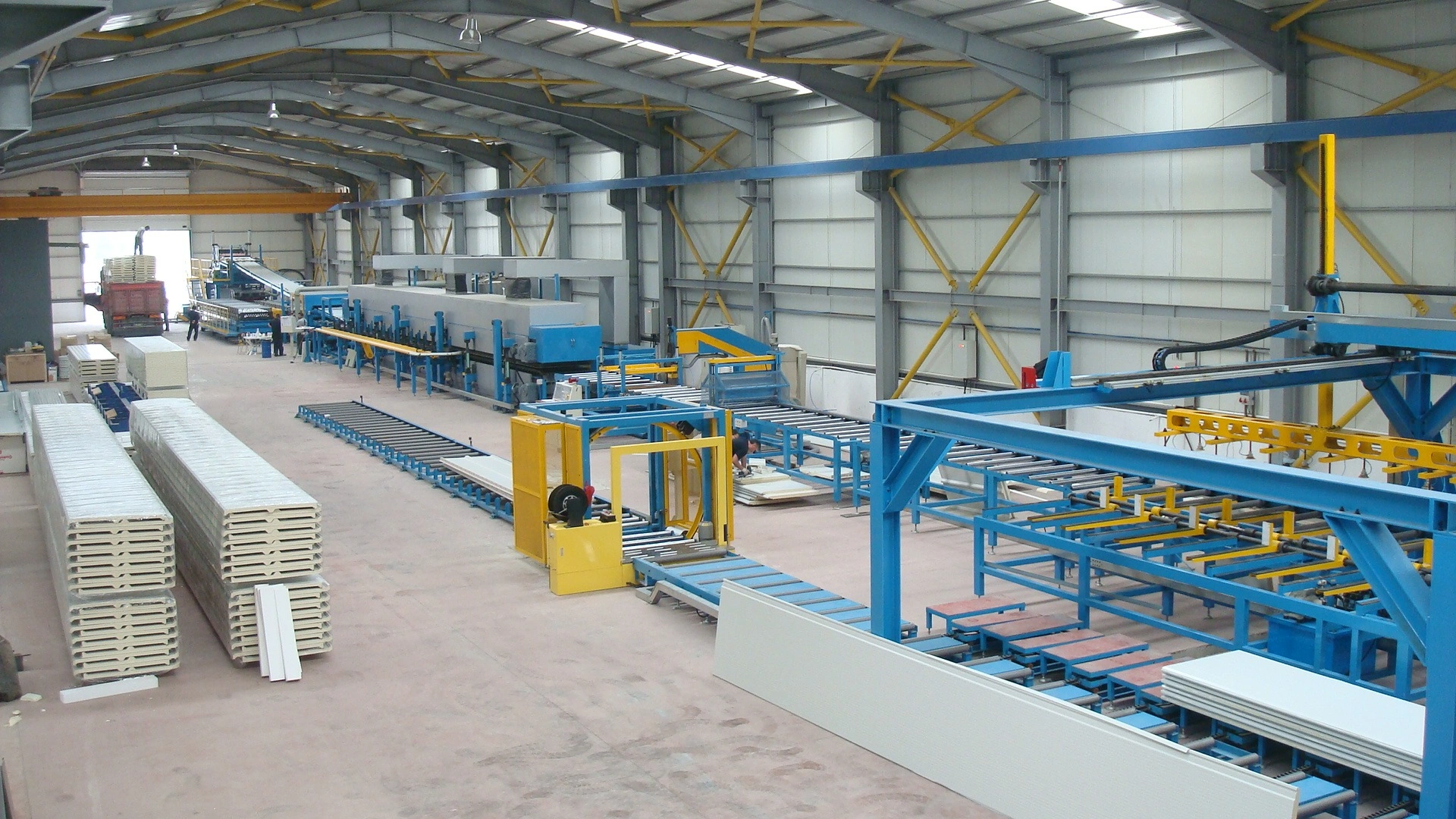

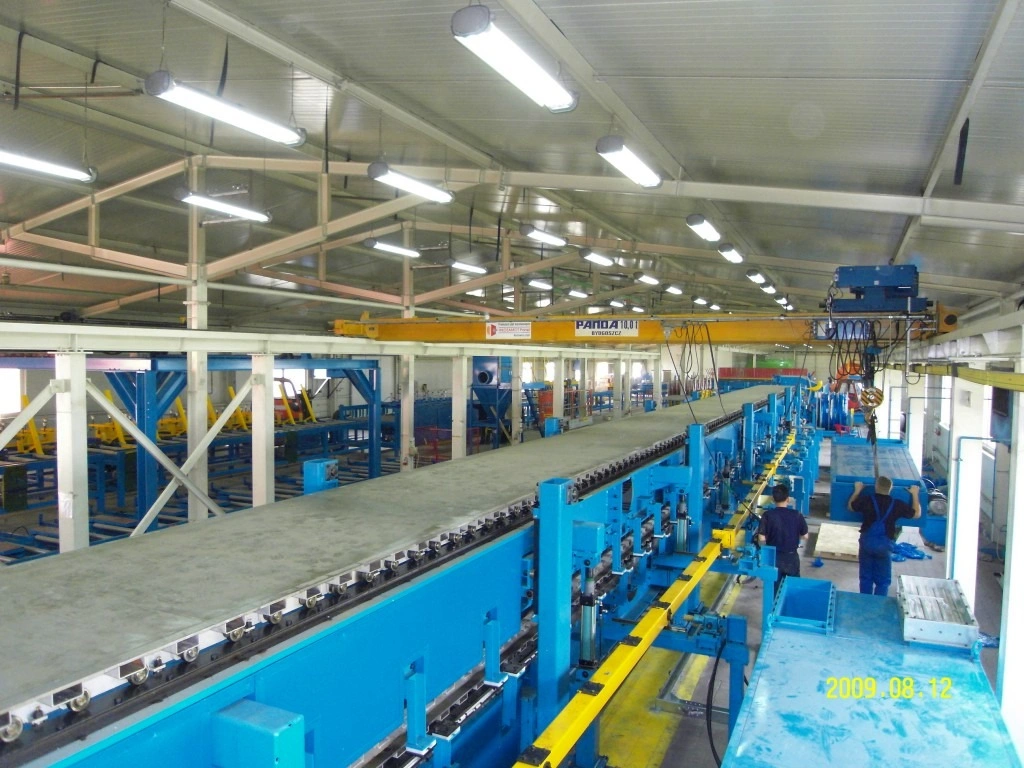

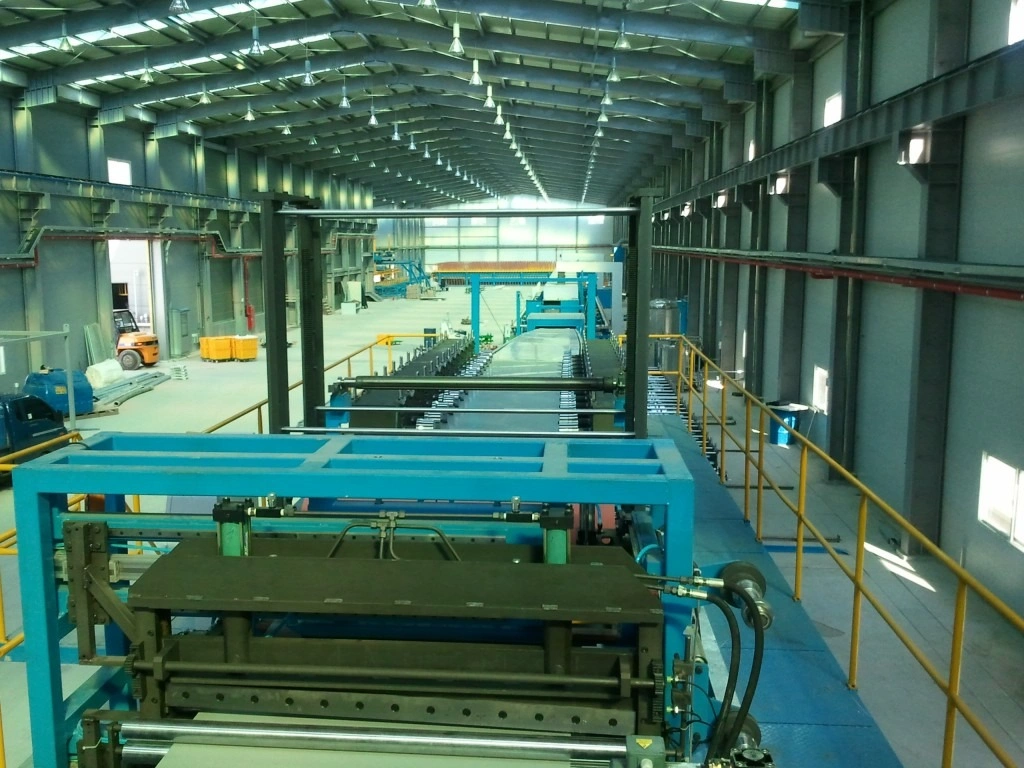

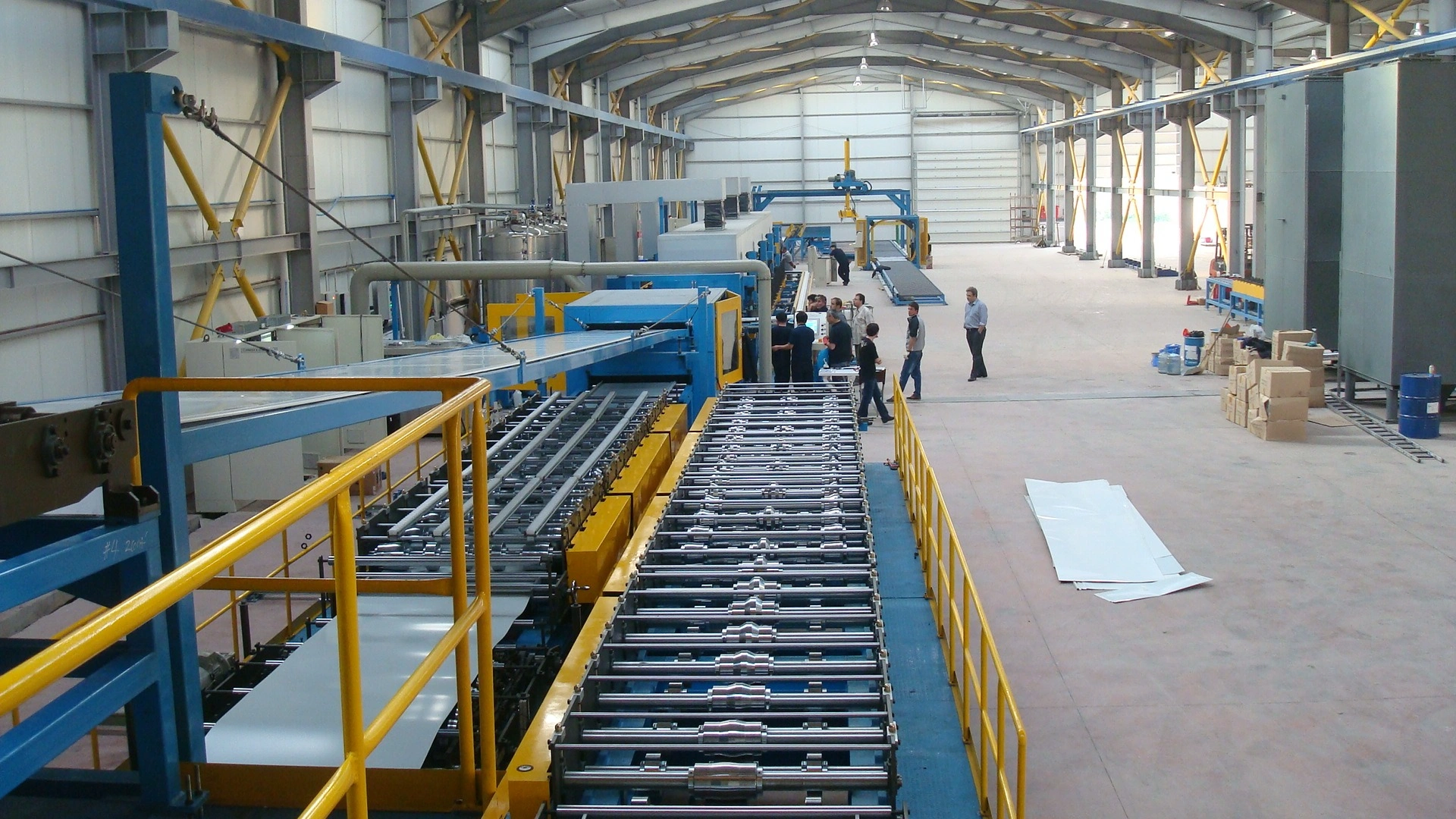

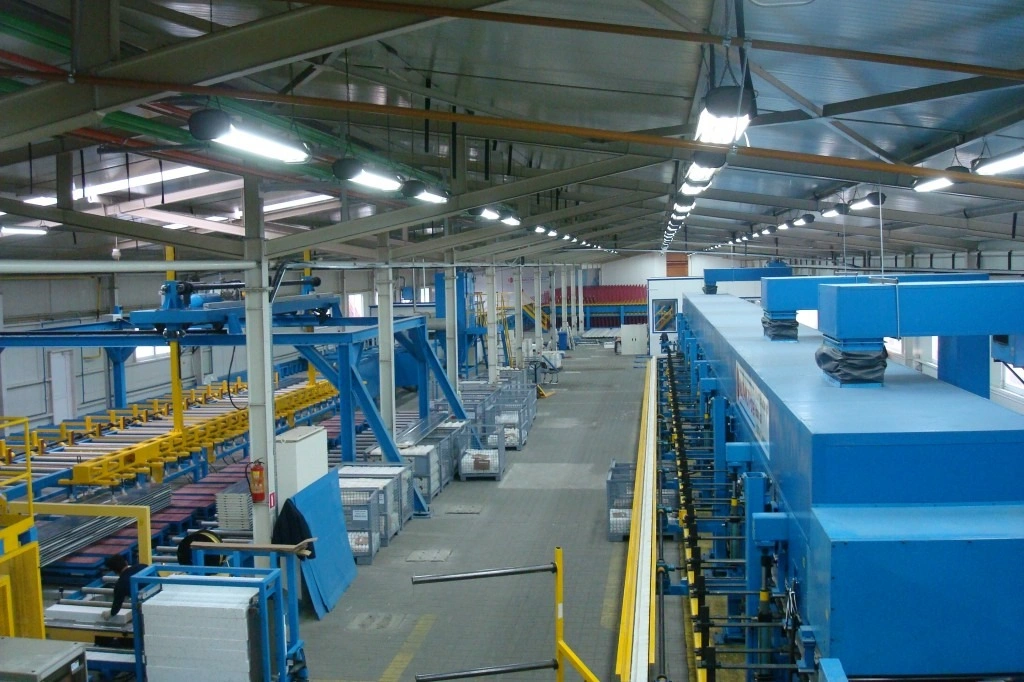

Continuous PU/PIR Sandwich Panel Line
Overview
Fully Automated High-Capacity
PU/PIR Sandwich Panel Production Line
The continuous PU, PIR sandwich panel line, which is made by KINDUS who was the first in S. Korea to success localization of the whole equipment, is manufactured based on a higher technical level all over the process throughout design, manufacturing, installation and commissioning.
Our sandwich panel production line system is a fully automation equipment system to produce various shapes of sandwich panels using a rigid-polyurethane foam or polyisocyanurate as a core material which is known as a top insulation in nowadays with low heat conductivity, heat reserving, anti-sweating, high strength durability and availability at construction site.
Our sandwich panel production line system is a fully automation equipment system to produce various shapes of sandwich panels using a rigid-polyurethane foam or polyisocyanurate as a core material which is known as a top insulation in nowadays with low heat conductivity, heat reserving, anti-sweating, high strength durability and availability at construction site.
Key Benefits
Fully Automatic
Continuous Production
Continuous Production
Pentane-Based PU/PIR
Foaming Technology
Foaming Technology
High-Speed
Double Belt Conveyor
Double Belt Conveyor
Stable Thickness
Calibration
Calibration
Industrial-Scale
Output Capacity
Output Capacity
Turnkey
Plant Integration
Plant Integration
Production process
Sandwich Panel Line Composition
STEP 1

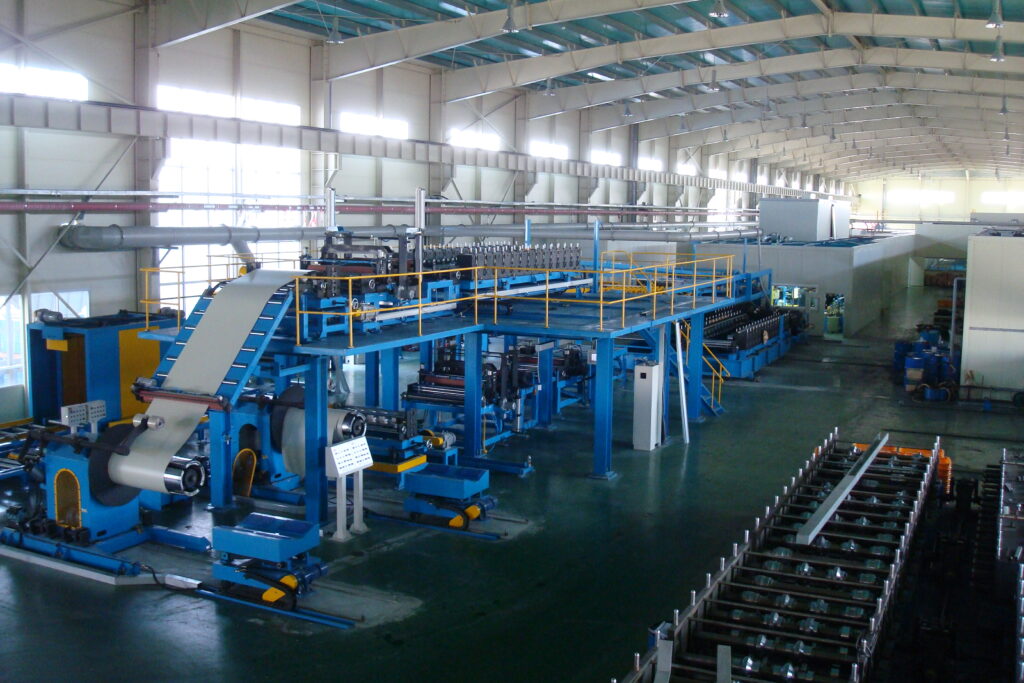

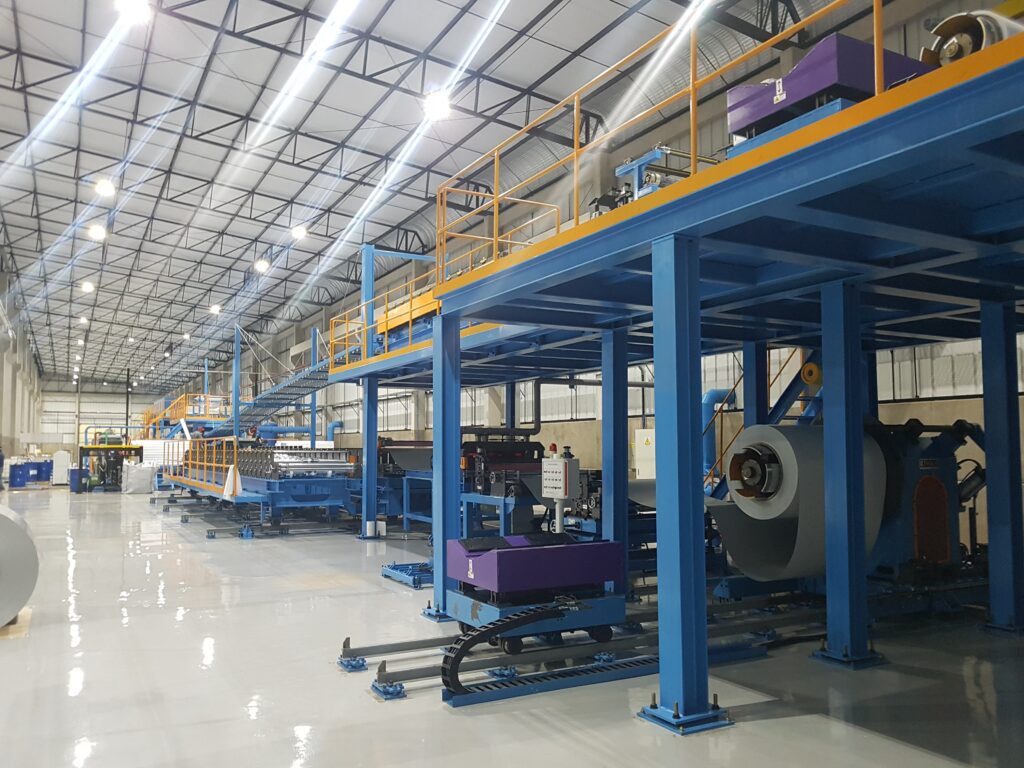

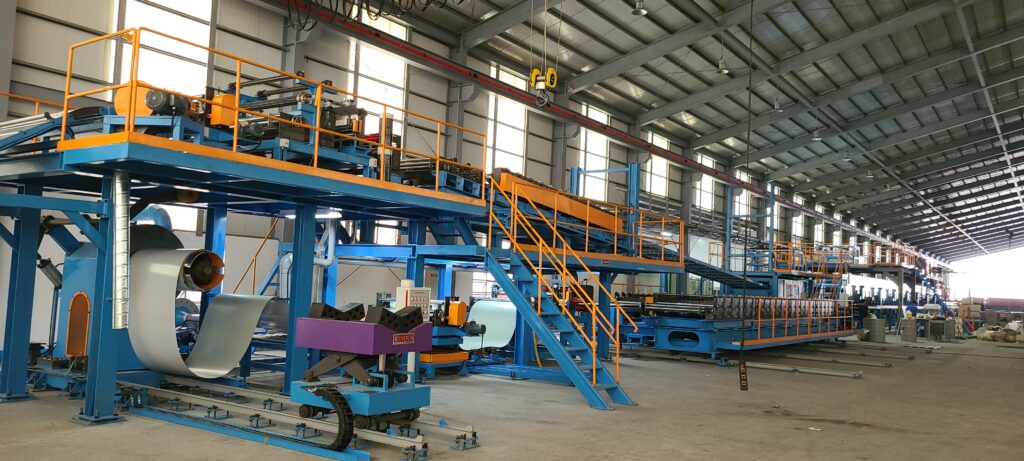

Decoiling System
Continuously feeds PPGI sheets into the sandwich panel line, available in cone- and arm-type configurations.
View Details
STEP 2

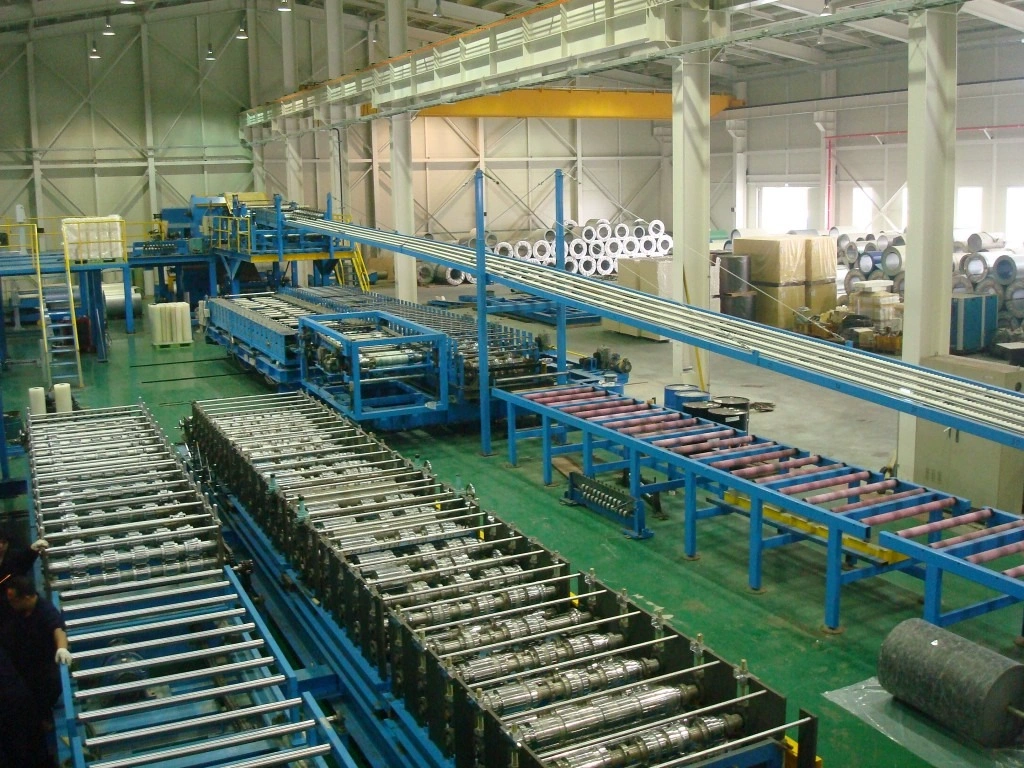

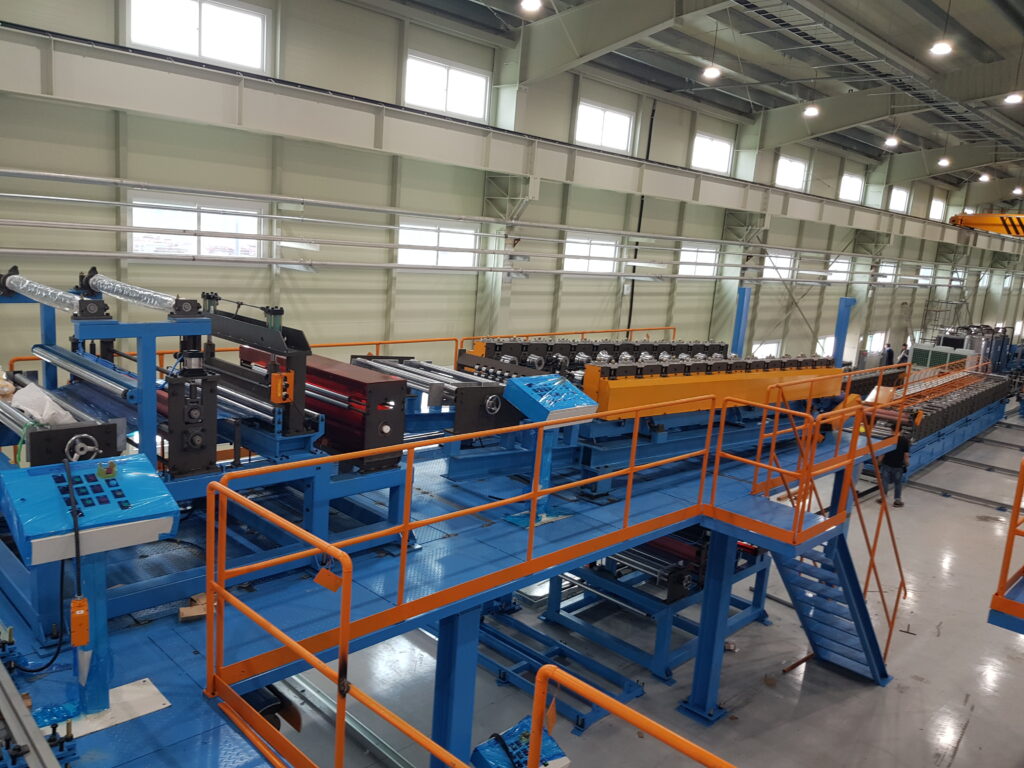

Roll Forming System
Self-developed roll design enables precise shaping with adjustable widths from 500mm to 1,200mm.
View Details
STEP 3

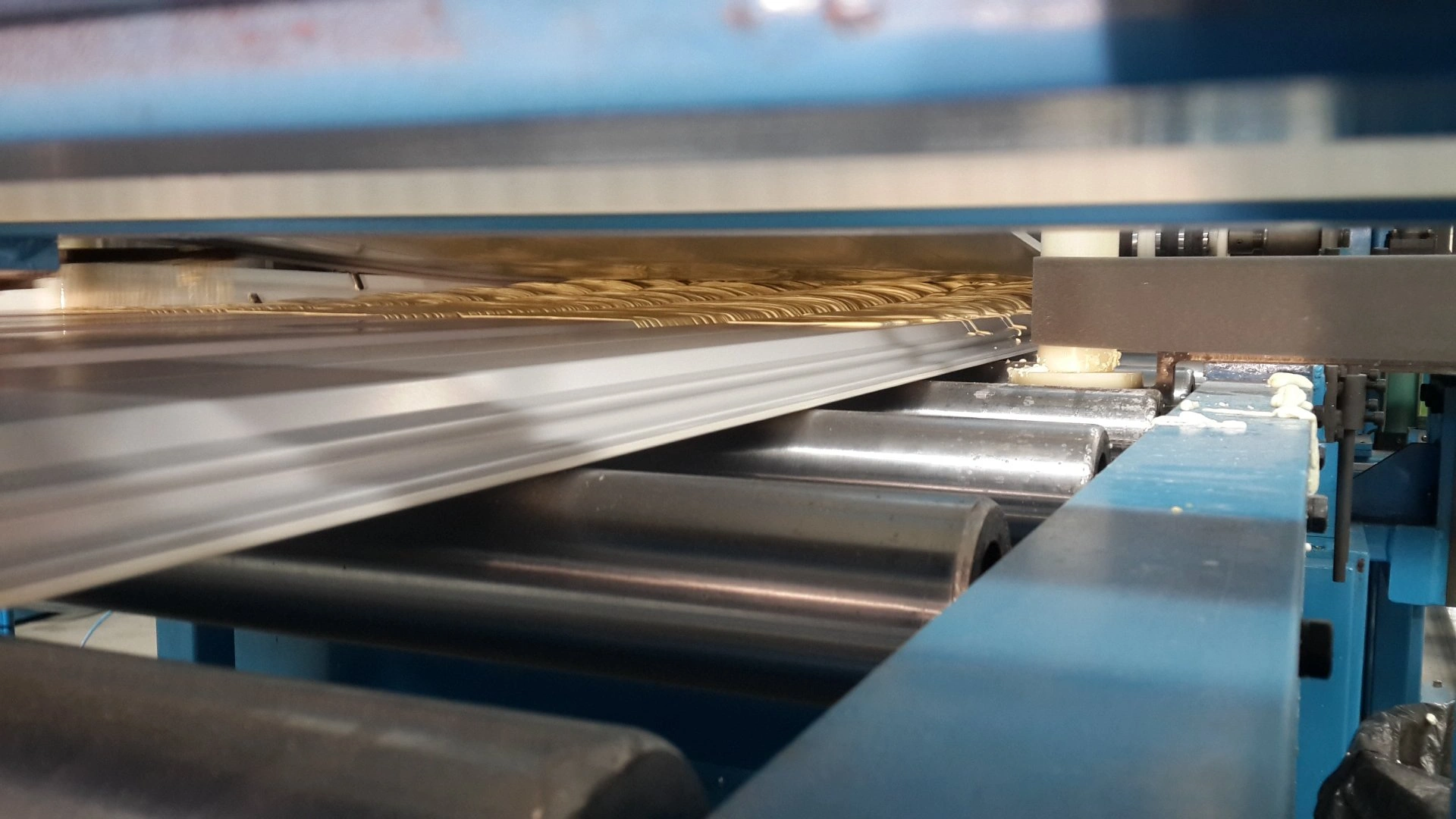

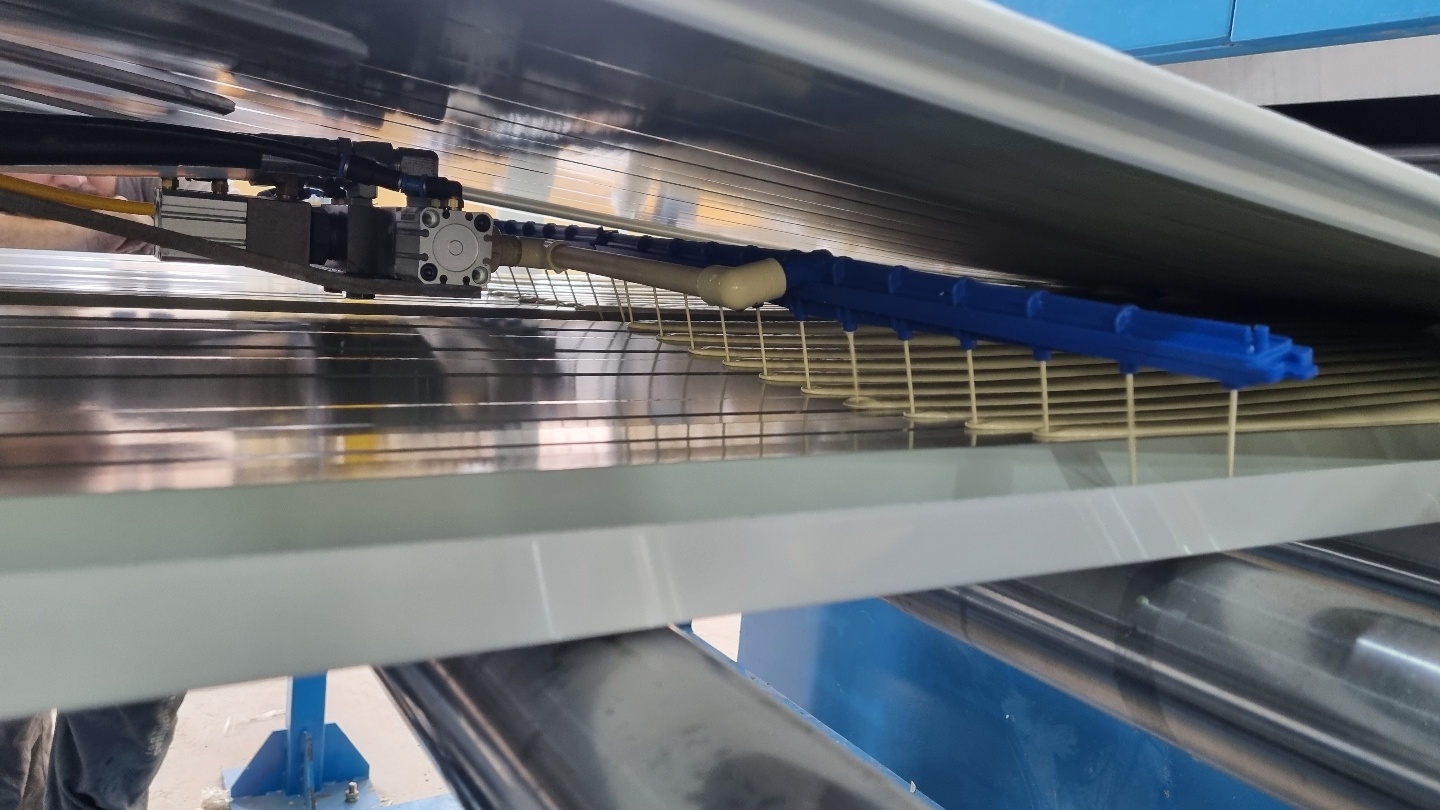

PU/PIR Foaming System
High-precision PU/PIR foaming system using German and Japanese components, proven by CE certification and global exports.
View Details
STEP 4

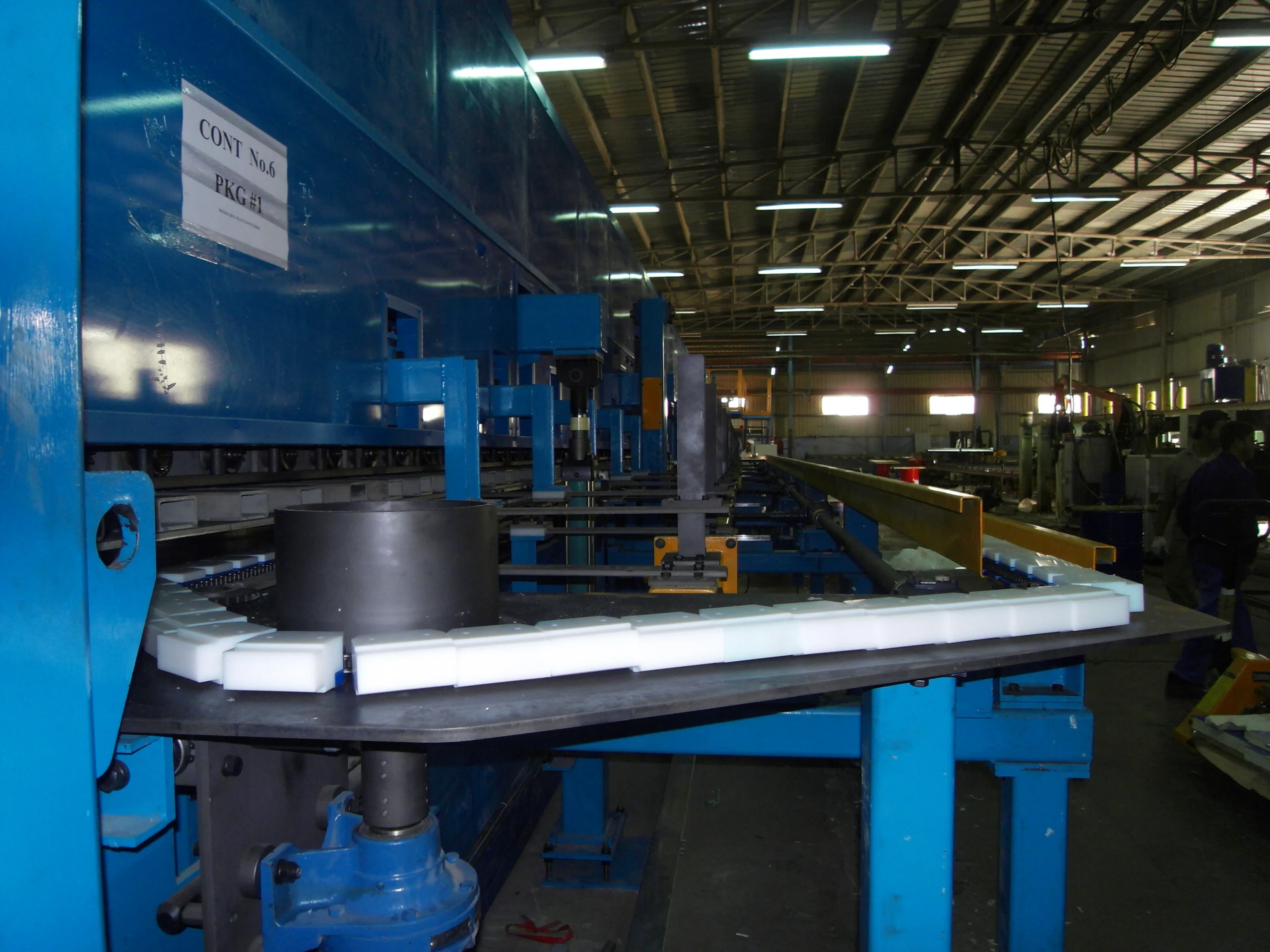

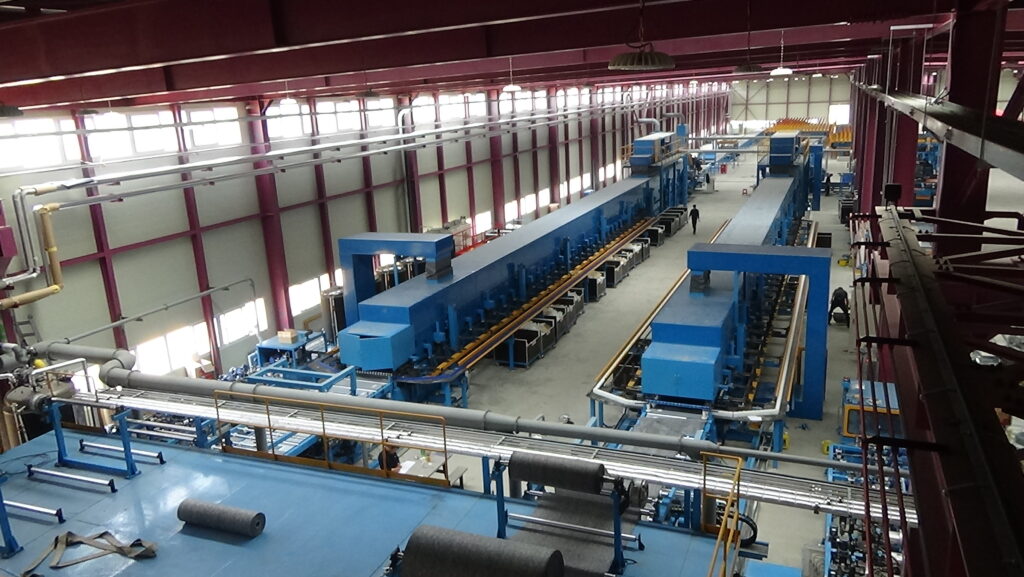

Double Belt Slat Conveyor System
Feeds PPGI sheets continuously into the sandwich panel production line.
Available in cone-type and arm-type configurations for different production needs.
View Details
STEP 5

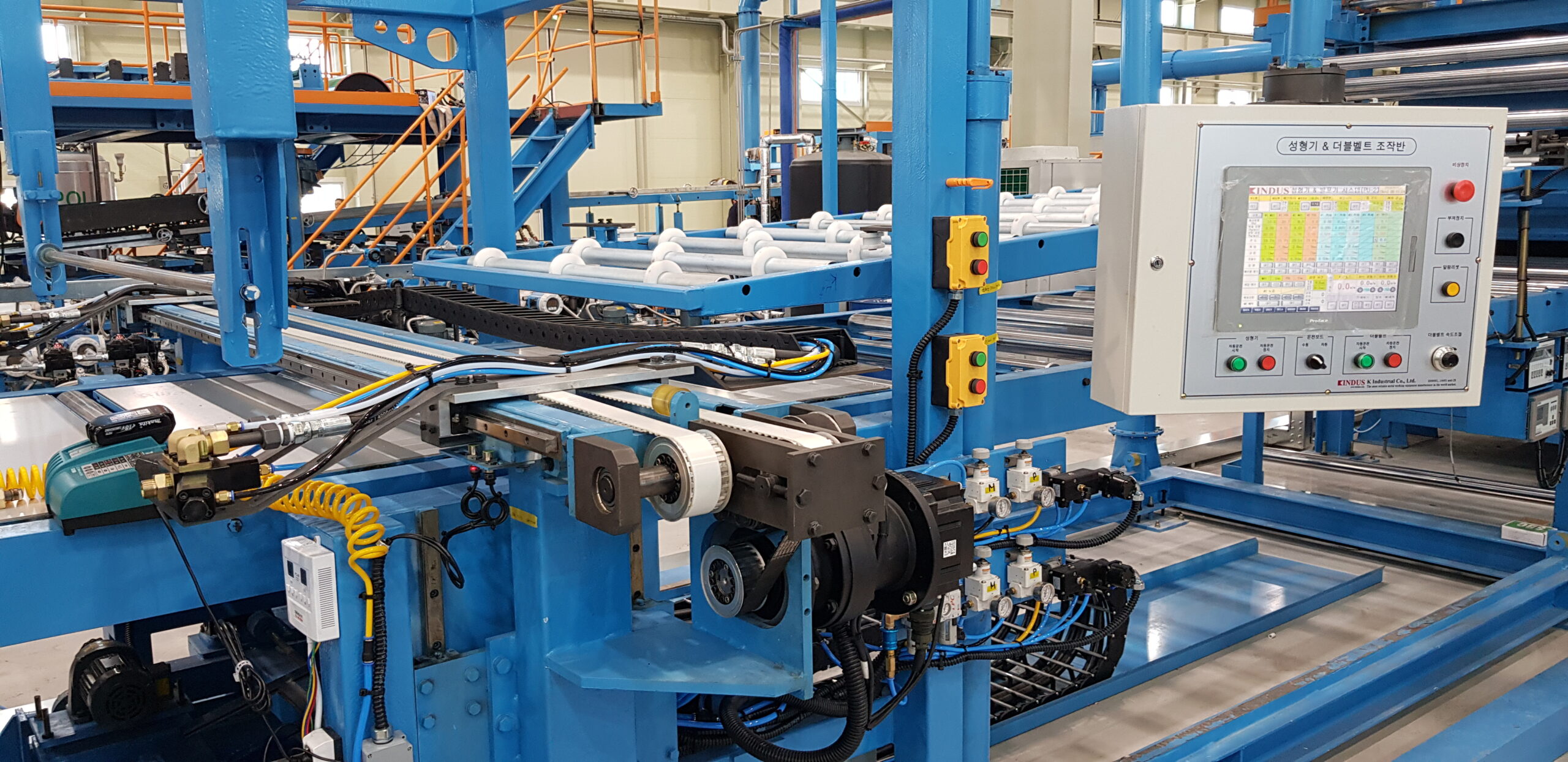

Cutting System
Cuts sandwich panels to set length and quantity via touchscreen, available in band saw and circular saw types.
View Details
STEP 6

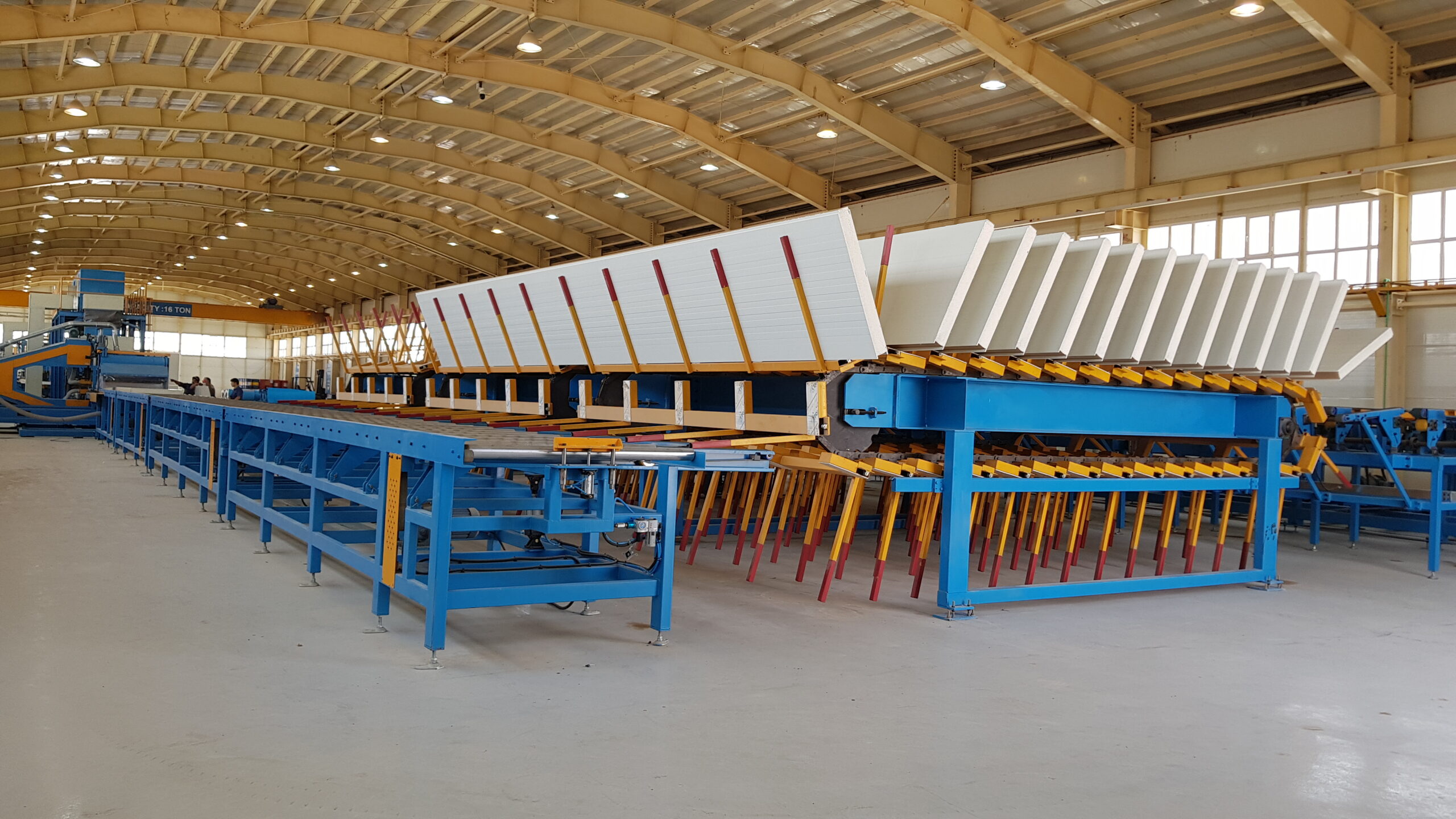

Cooling System
Cools residual heat of produced sandwich panels as they move horizontally in a standing position.
View Details
STEP 7

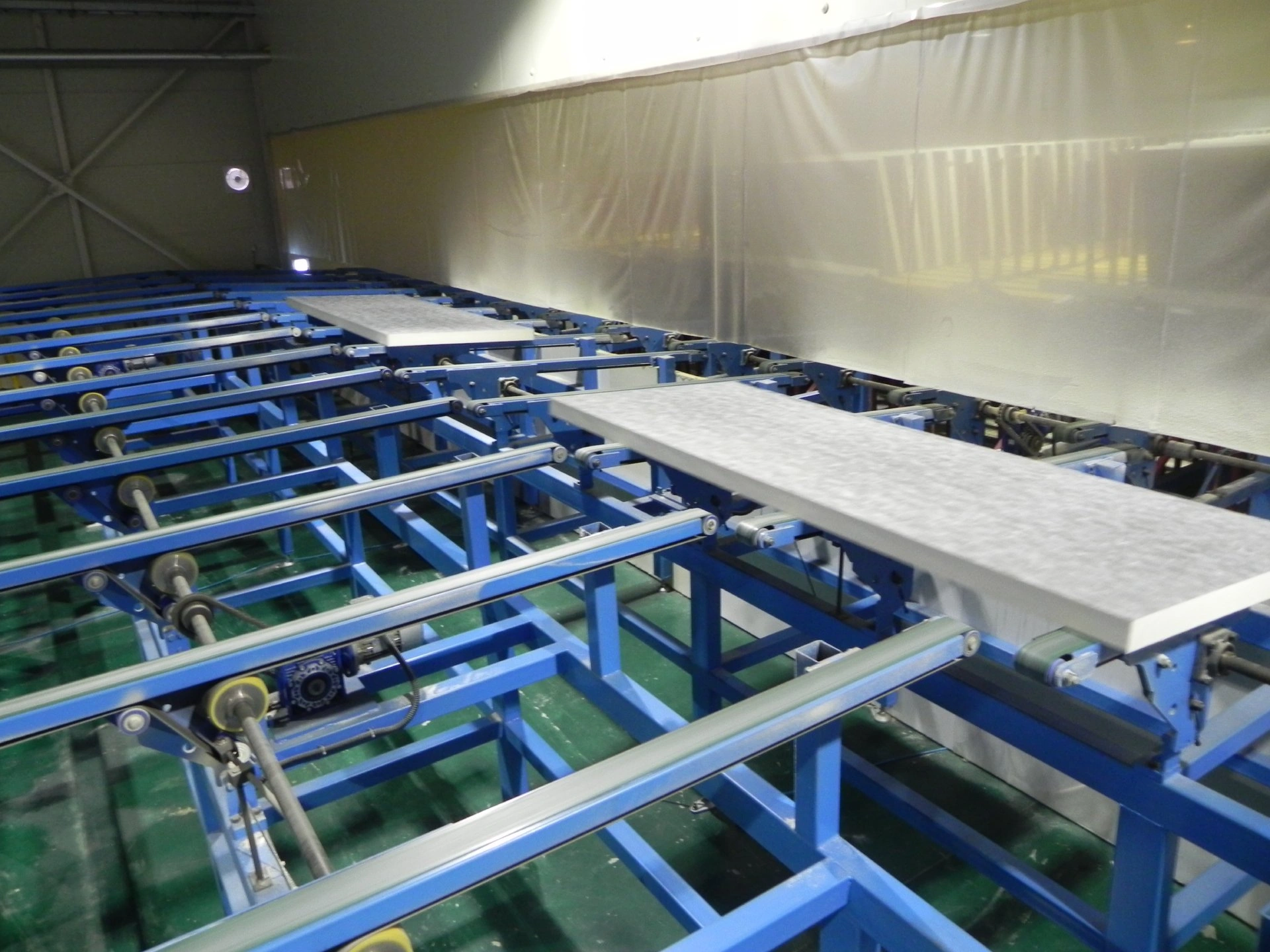

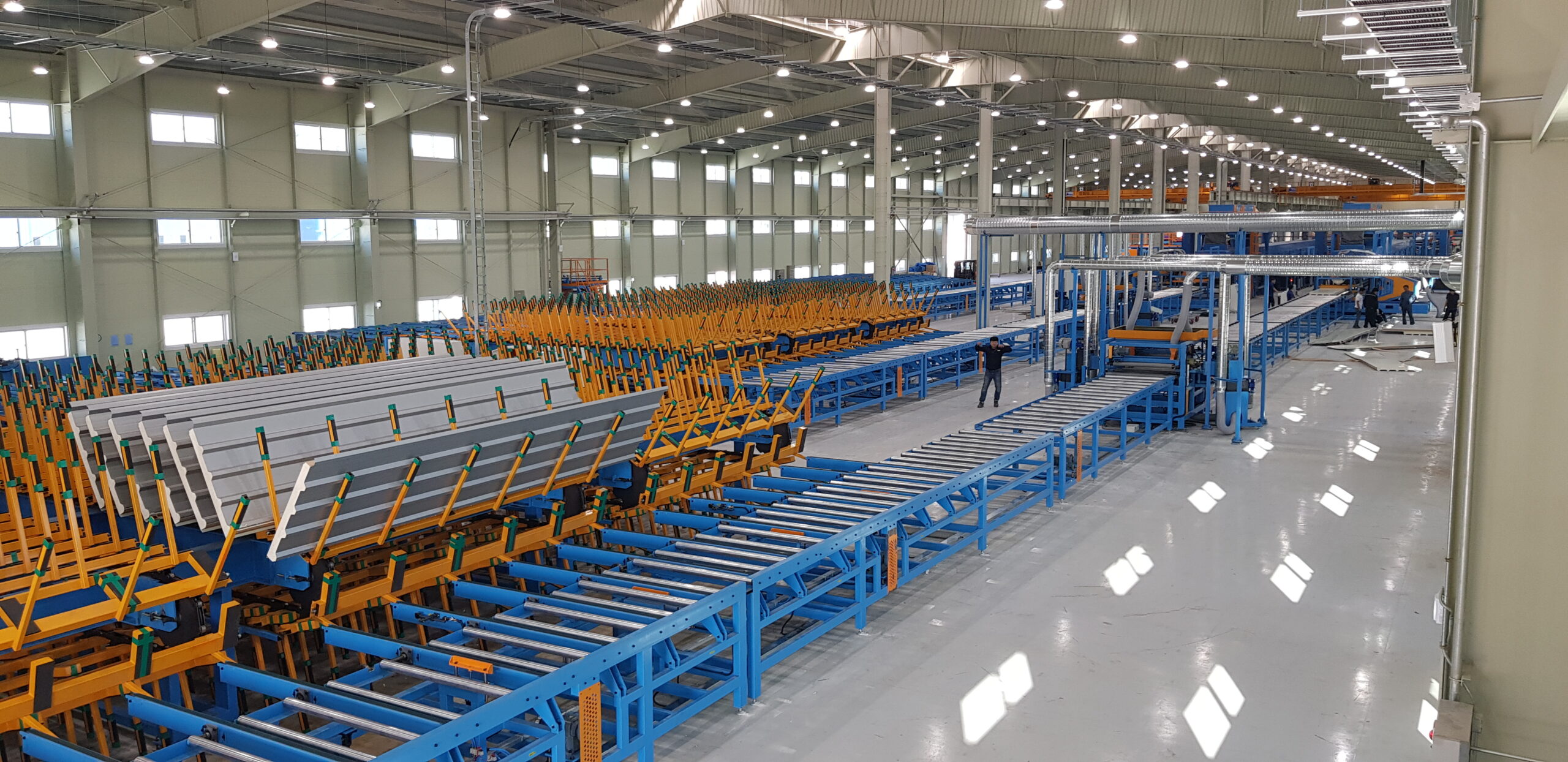

Stacking System
Automatically stacks cooled panels by preset quantity, available in vacuum pad or mechanical lifter types.
View Details
STEP 8

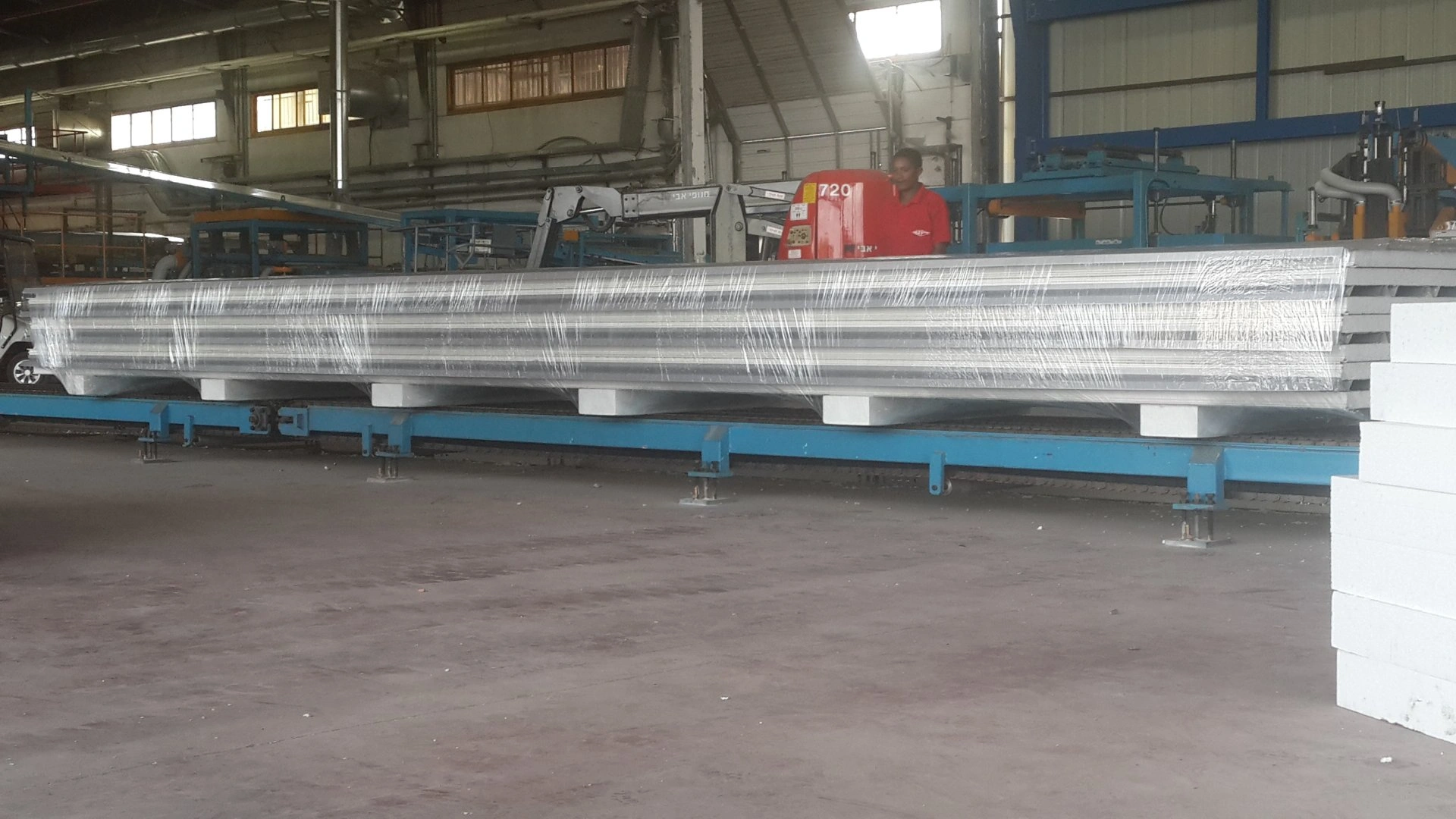

Wrapping System
Final-stage wrapping system protects panels from contamination, rust, and surface damage during transport.
View Details

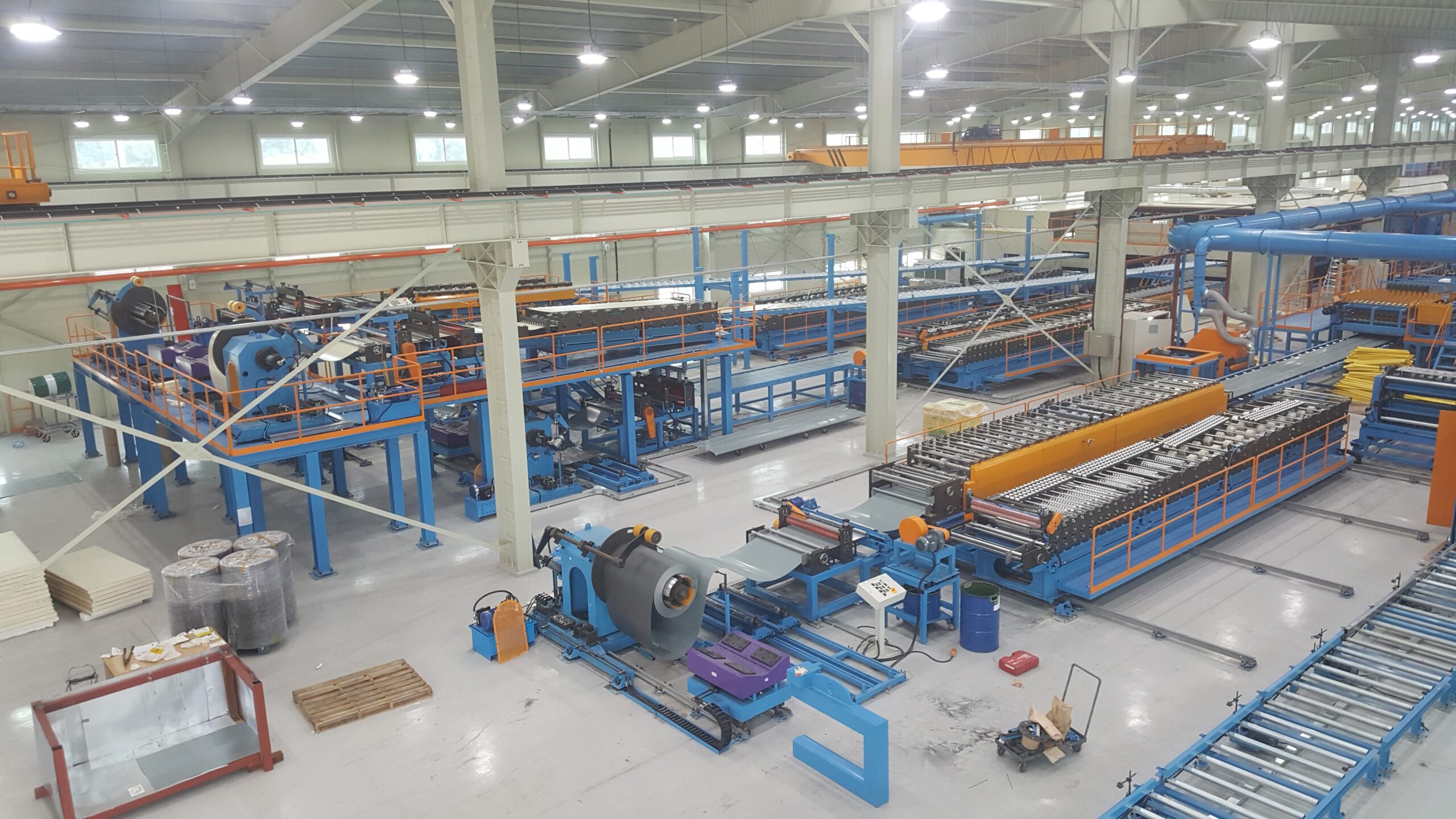

Turnkey Engineering
KINDUS manufactures the entire continuous PU/PIR sandwich panel production line using proprietary engineering technology.
We provide complete support from:
- Plant layout design
- Equipment manufacturing
- Installation & commissioning
- Operator training
- After-sales technical support
This ensures stable long-term operation and optimized panel quality.
General Specifications
| Kind of products | Interior wall, Exterior wall, Corrugated roof, Siding, Metal, Tiled roof and more |
|---|---|
| Density of core material | Standard 35K±5 · 40K±5 |
| Production speed | Average 4~12m/min |
| Annual capacity | About 1,000,000m² |
| Necessary dimension | Approximately W20m x L120m x H7m |
| Required electric power | About 400kw |
| Required air pressure | Minimum 6~7bar |
